Rear Door

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>REAR DOOR .
  3. Remove the sealing cover door rear. Ref. to EXTERIOR BODY PANELS>Sealing Cover>REMOVAL>REAR SEALING COVER .
  4. Remove the running channel rear door and glass assembly rear door. Ref. to GLASS/WINDOWS/MIRRORS>Rear Door Glass>REMOVAL .

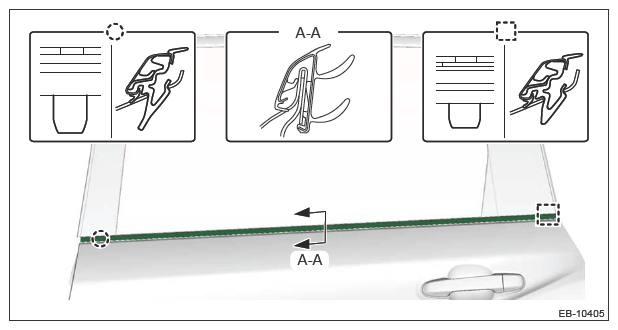

  5. Remove the weather strip outer door rear.
    CAUTION:
    • When removing the weather strip outer, be careful not to damage the vehicle  .
    • Do not reuse the weather strip outer. Always replace with a new part  .
    G13201721Courtesy of SUBARU OF AMERICA, INC.

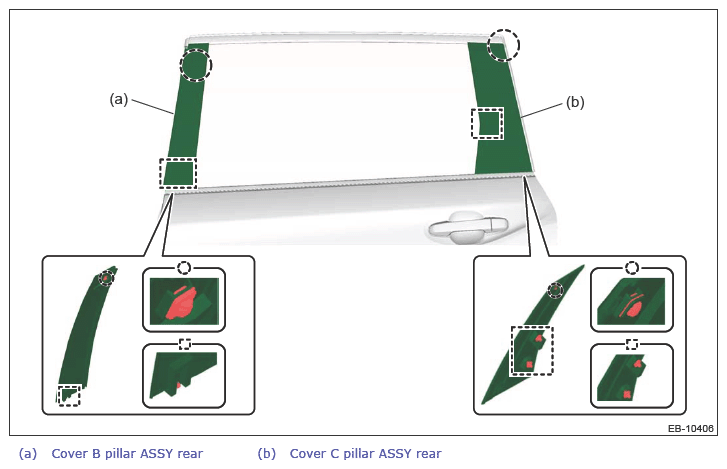

  6. Remove the cover B pillar assembly rear and the cover C pillar assembly rear.
    G13865568Courtesy of SUBARU OF AMERICA, INC.

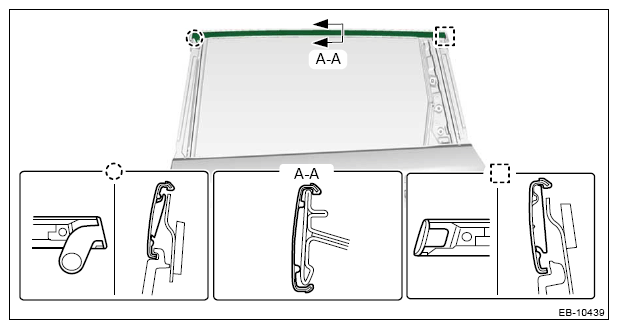

  7. Remove the molding door sash rear.
    G13201723Courtesy of SUBARU OF AMERICA, INC.
  8. Peel the door sash tape from the door sash.
    NOTE:
    • If the tape is difficult to remove, warm the tape with a hairdryer, etc. to make the removal easier  .

      Use a household hairdryer. Do not use industrial dryers  .

    • If tape residue is remaining on the door sash, wipe clean  .
