Rear Door Glass: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>REAR DOOR .
  3. Remove the rear sealing cover. Ref. to EXTERIOR BODY PANELS>Sealing Cover>REMOVAL>REAR SEALING COVER .
  4. Remove the regulator and motor assembly rear. Ref. to GLASS/WINDOWS/MIRRORS>Rear Regulator and Motor Assembly>REMOVAL .
  5. Remove the glass assembly rear door.
    CAUTION:
    • Avoid impact and damage to the glass assembly rear door  .
    • Move the sash assembly rear lower with minimal motion to remove the glass assembly rear door. The double-sided tape on the cover C pillar assembly rear may come off  .

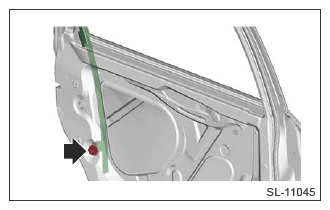

    1. Remove the bolts from the lower sides of the sash assembly rear lower.
      G13201000Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the glass assembly rear door.
