Trip Reset Switch

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
  3. Remove the visor assembly. Ref. to INSTRUMENTATION/DRIVER INFO>Combination Meter>REMOVAL .
  4. Remove the switch assembly meter.

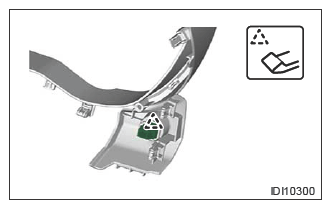

    1. Release the claws, and remove the switch assembly meter.
      G13201055Courtesy of SUBARU OF AMERICA, INC.
