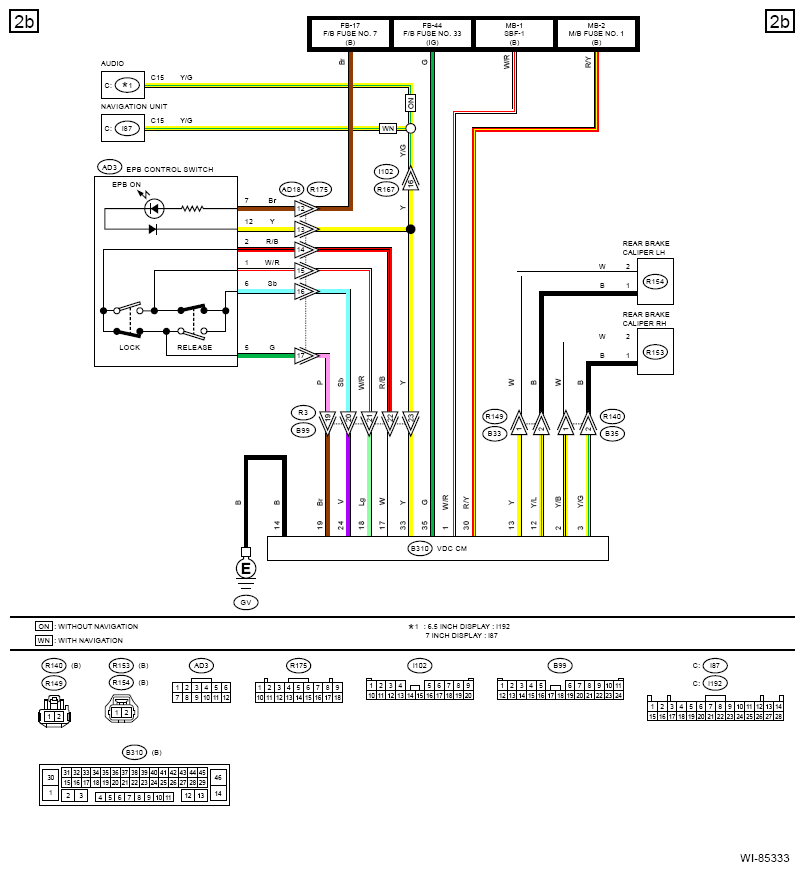

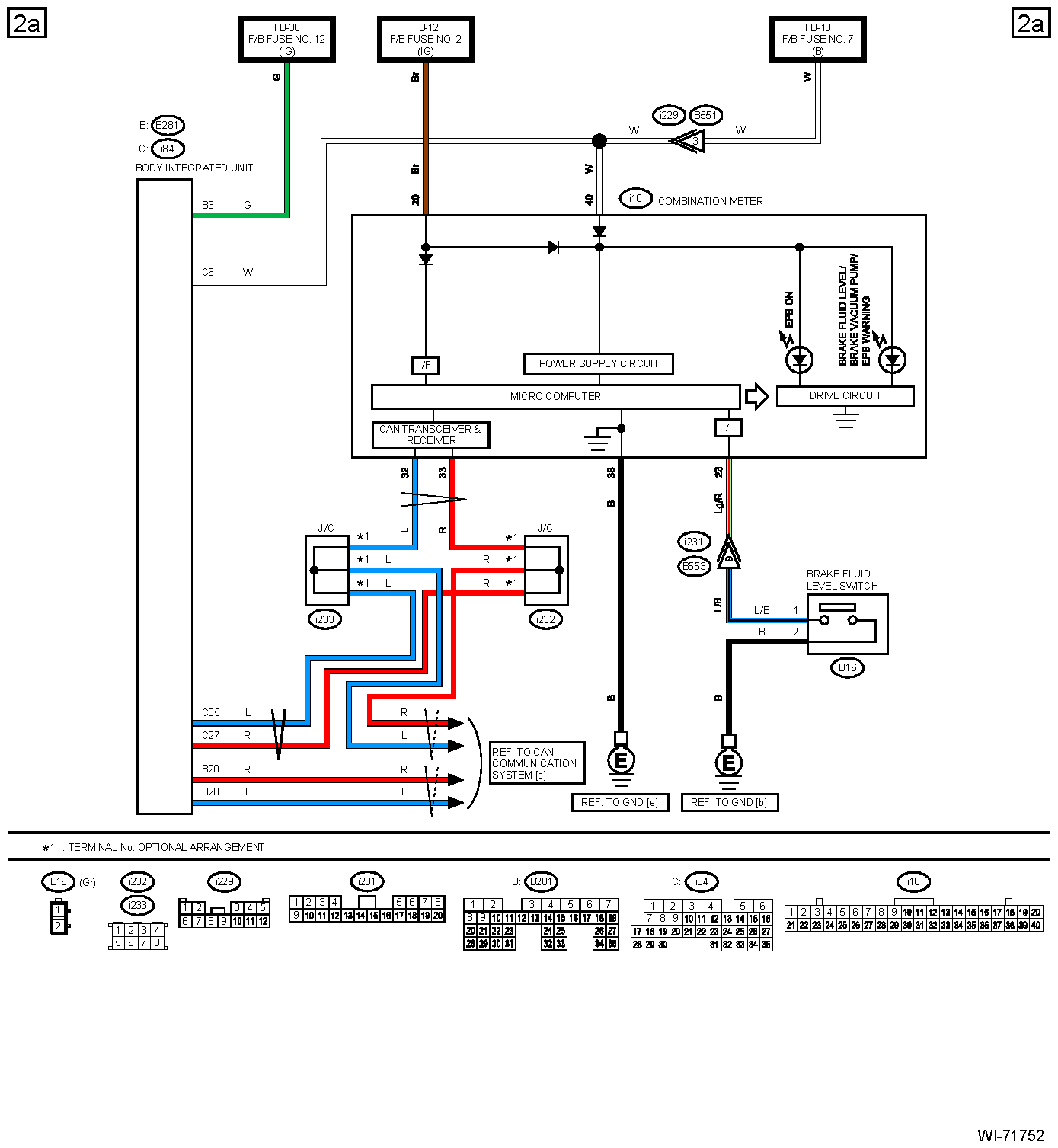

Home >> Subaru >> 2020 >> WRX STI Limited >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations >> Parking Brake/Brake Fluid Level Warning Light System >> Wiring Diagram >> WITH EyeSight
