Draining Of Engine Coolant

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • The engine coolant is pressurized when it is hot. Wait until engine coolant cools down before proceeding the work.
  • If the engine coolant is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.

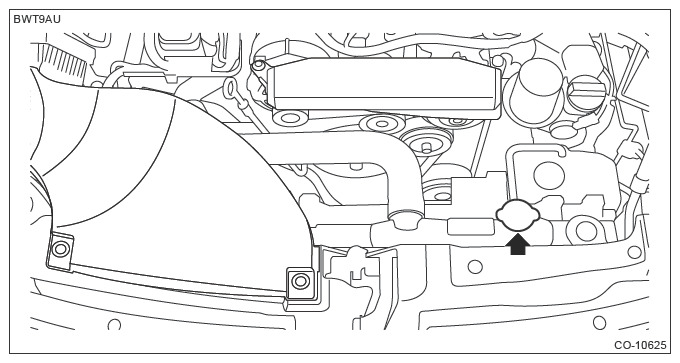

  1. Remove the radiator cap.
    G13619227Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the under cover front. Refer to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .

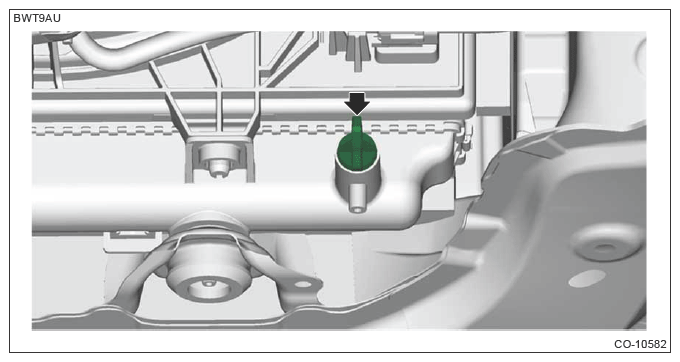

  3. Loosen the radiator drain plug to drain engine coolant.
    G13619228Courtesy of SUBARU OF AMERICA, INC.
  4. After draining the engine coolant, remove the radiator drain plug.
  5. Install the radiator drain plug with a new O-ring.
  6. Install the under cover front. Refer to EXTERIOR/INTERIOR TRIM>Front Under Cover>INSTALLATION .
  7. Drain the coolant from reservoir tank.
