Intake Duct No. 2

  1. Remove the air intake duct. Refer to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>REMOVAL .
  2. Remove the under cover front. Refer to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
  3. Remove the bolt and release the spring lock to remove the intake duct No. 2.
    NOTE: Move both ends of the spring to the cut outs of the intake duct No. 2 using a flat tip screwdriver wrapped with protection tape.

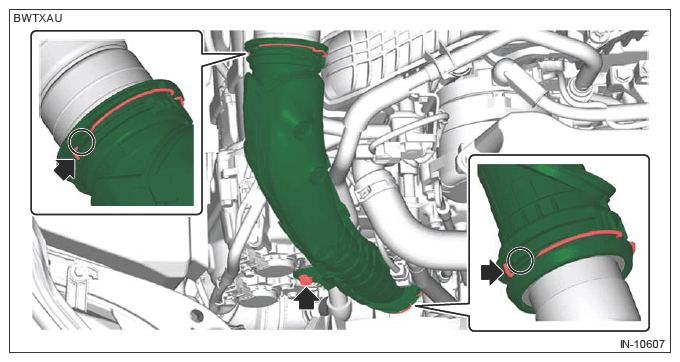

    G13619993Courtesy of SUBARU OF AMERICA, INC.
