OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Airbag System
>>
Wiring Diagram

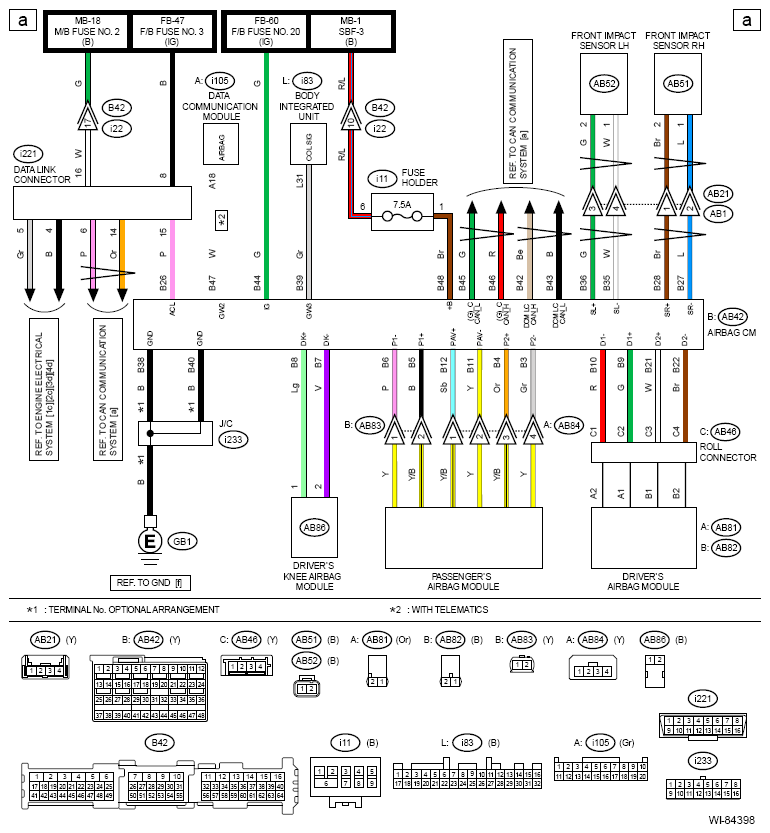

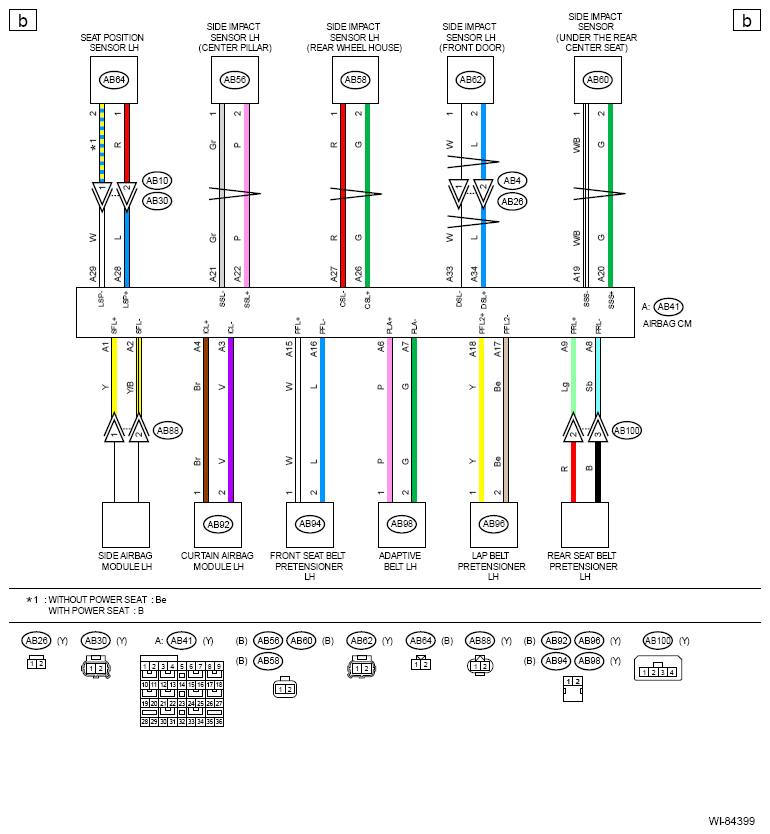

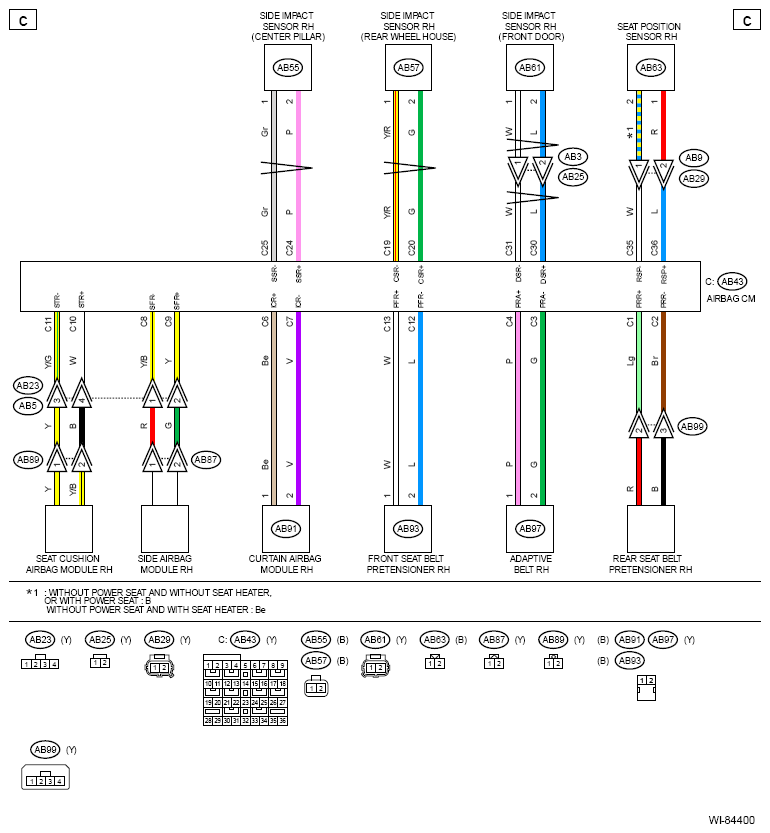

Airbag System: Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
