Door Outer Handle: Removal: Rear

  1. Raise the glass assembly rear door to the top position.
  2. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the trim panel rear door. Refer to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>REAR DOOR .
  4. Remove the sealing cover rear door. Refer to EXTERIOR BODY PANELS>Sealing Cover>REMOVAL>REAR SEALING COVER .
  5. Remove the latch and actuator assembly rear. Refer to SECURITY AND LOCKS>Door Latch & Door Lock Actuator Assembly>REMOVAL>REAR .
  6. Remove the cover handle rear outer.
    1. Loosen the TORX® bolt.

      Preparation tool:

      TORX® T30

    2. Release the claws, and then remove the cover handle rear outer.

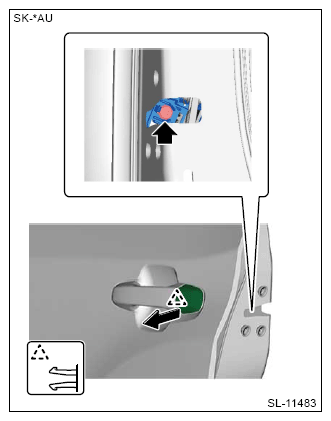

      G13226877Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the handle rear door outer.
    CAUTION: Do not apply excessive force to remove the outer handle from the door frame assembly.
    1. Remove the holder.

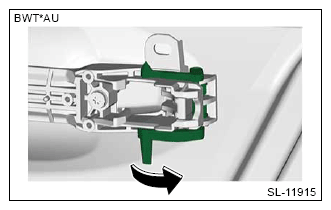

      G13625709Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the handle rear door outer by pulling it toward yourself and to the rear as shown in the figure.
      G13226873Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the spacer door handle outer.
    1. Release the claws and hooks, and remove the spacer door handle outer A and B.
      G13226874Courtesy of SUBARU OF AMERICA, INC.
  9. Loosen the TORX® bolt and remove the frame assembly rear door outer as shown in the figure.

    Preparation tool:

    TORX® T30

    G11246305Courtesy of SUBARU OF AMERICA, INC.
