Home >> Subaru >> 2020 >> Outback Base >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Entertainment System >> Rear Speaker >> Removal

Rear Speaker: Removal

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel rear door. Refer to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>REAR DOOR .
  3. Remove the speaker assembly rear.
    1. Disconnect the connector.
    2. Remove the screws and remove the speaker assembly rear.

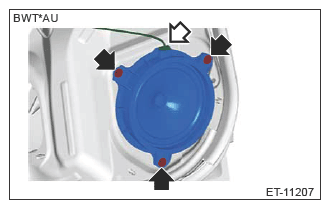

    G13622974Courtesy of SUBARU OF AMERICA, INC.
