Parking Brake Harness

Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
NOTE:
- Release the shift lock and shift the select lever to the "N" position. Refer to CONTROL SYSTEMS>Select Lever>REMOVAL .
- On power seat models, move the front seat all the way forward before disconnecting the ground terminal from the battery sensor.
Lift up the vehicle, and then remove the rear wheels.
Remove the protector tank.
- H4DO model: Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Tank Protector>REMOVAL .
- H4DOTC model: Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Tank Protector>REMOVAL .

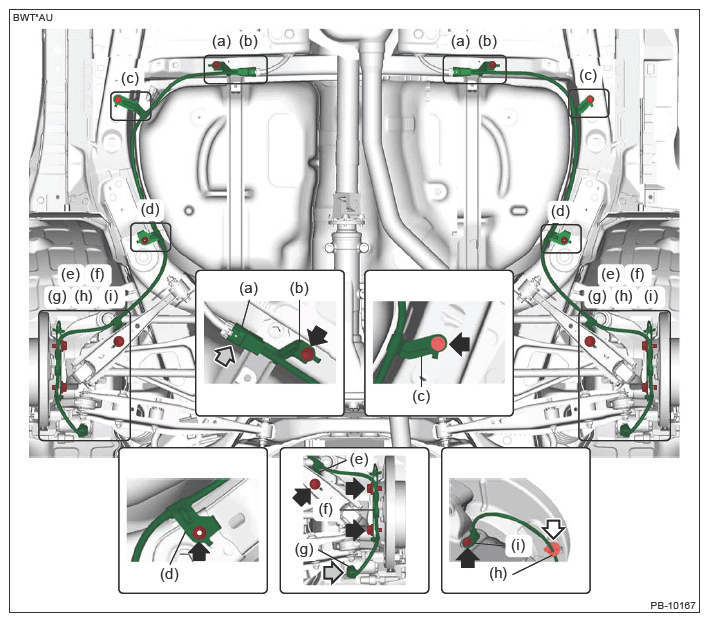

Remove the adapter cord EPB & sensor sub assembly rear.
1. Disconnect the connector (a).
2. Remove the clamp (b).
3. Remove the clamp (c).
4. Remove the clamp (d).
5. Remove the clamp (e).
6. Remove the clamp (f).
7. Disconnect the connector (g).
8. Remove the clip (h).
9. Remove the sensor sub assembly rear (i).
