H4DOTC Model

  1. Remove the air intake boot. Refer to INTAKE (INDUCTION) (H4DOTC)>Air Intake Boot>REMOVAL .
  2. Remove the intercooler. Refer to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
  3. Remove the vacuum hose & pipe.

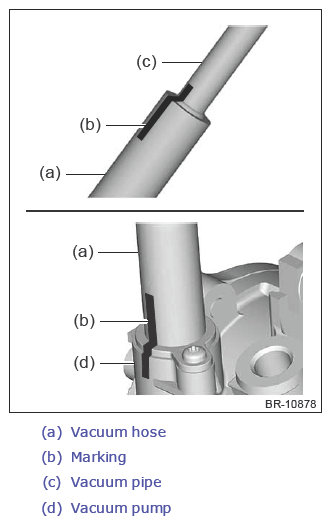

NOTE: Perform marking of the vacuum hose on the vacuum pump side as shown in the figure below.
G13621423Courtesy of SUBARU OF AMERICA, INC.
  1. Remove the bolts securing the vacuum hose & pipe to the engine rear hanger.
    G13199770Courtesy of SUBARU OF AMERICA, INC.

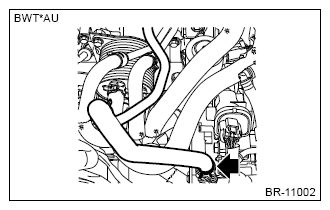

  2. Disconnect the vacuum hose from the vacuum pump.
    G13621425Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the vacuum hose & pipe from the vacuum booster assembly.
    G13199772Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the vacuum hose from vacuum pipe.
G13621427Courtesy of SUBARU OF AMERICA, INC.
