Related Lines, More Than 52 Ω And Less Than 62 Ω ((J) Vehicle External Connection Can_Remote Engine Starter)

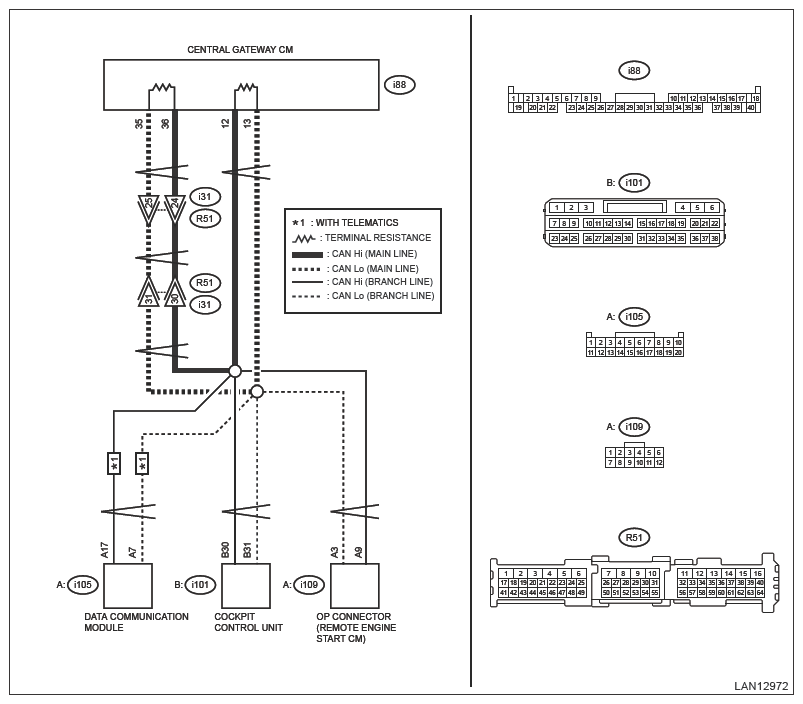

Wiring diagram:

CAN communication system Refer to WIRING SYSTEM>CAN Communication System>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS  .
   1. Disconnect the remote engine start Control Module connector.
   2. Using a tester, measure the resistance between remote engine start Control Module connector terminals.

      Connector & terminal

      (i109) No. 3 - (i109) No. 9:

   Is the resistance 400 Ω or more?

   Yes:  A related line between remote engine start Control Module and main wiring harness is open, or main wiring harness is open at two places or more.

   No:  Go to  2.

2. CHECK RELATED LINES  .
   1. Disconnect the central gateway Control Module connector.
   2. Using a tester, measure the resistance between remote engine starter Control Module connector and central gateway Control Module connector.

      Connector & terminal

      (i109) No. 3 - (i88) No. 13:

      (i109) No. 9 - (i88) No. 12:

   Is the resistance 10 Ω or more?

   Yes:  Repair or replace the open circuit of remote engine start Control Module related lines.

   No:  CHECK the remote engine starter Control Module or the mobile key.
