Without Telematics

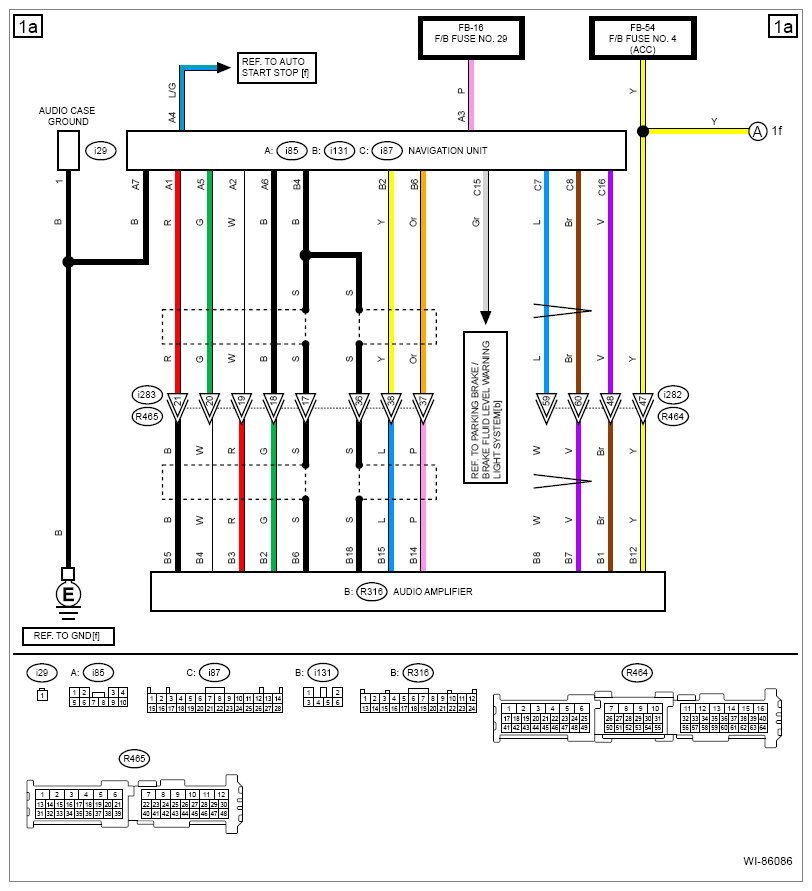

G13614155Courtesy of SUBARU OF AMERICA, INC.

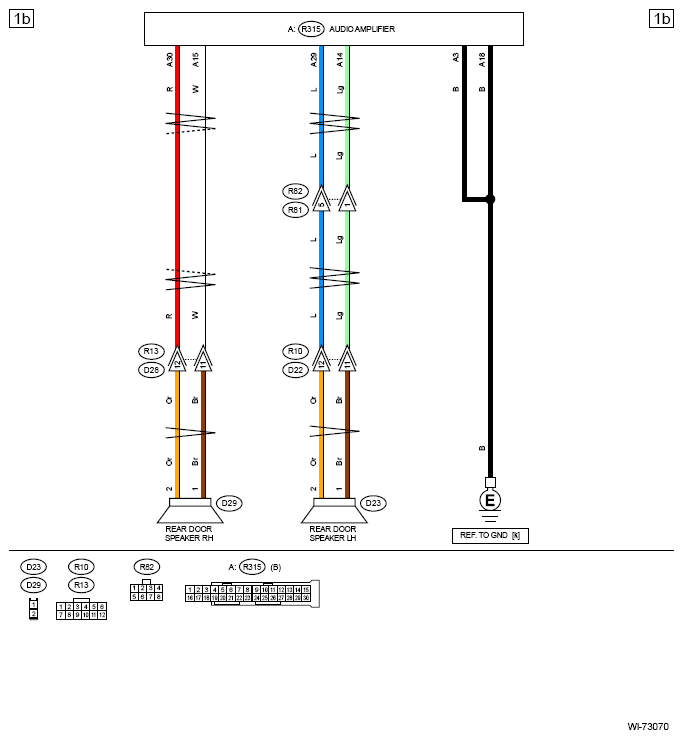

G13236311Courtesy of SUBARU OF AMERICA, INC.

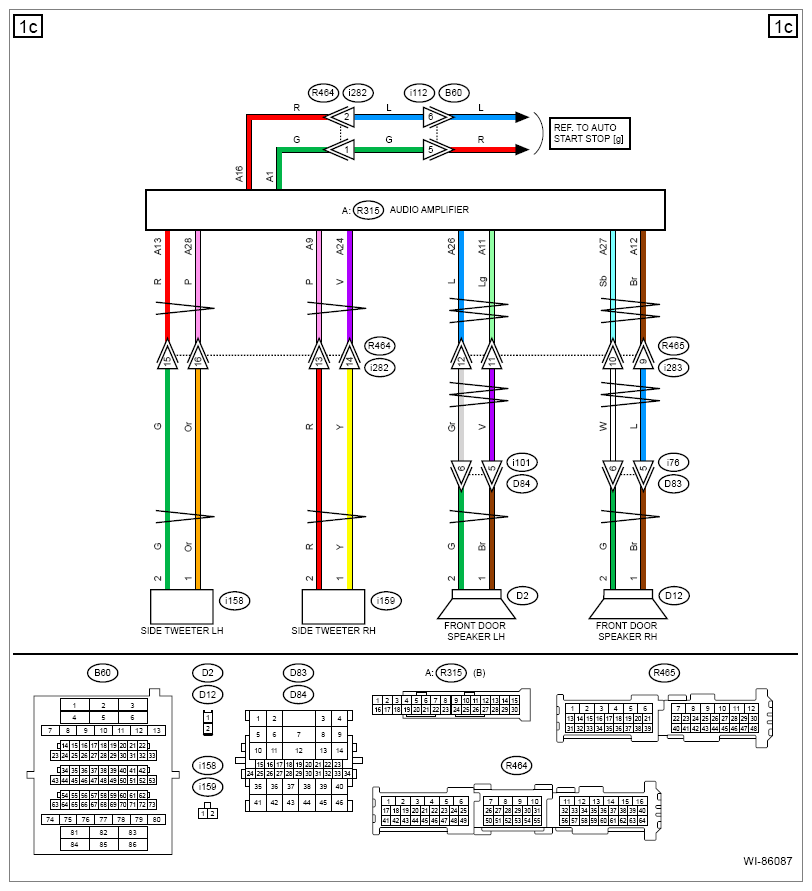

G13614157Courtesy of SUBARU OF AMERICA, INC.

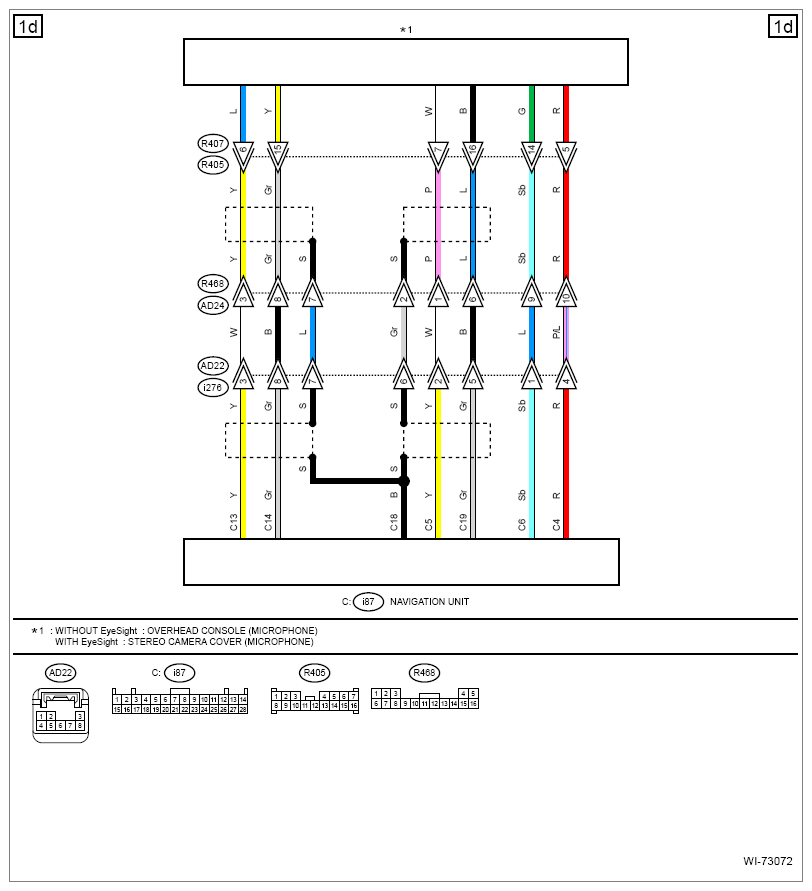

G13614158Courtesy of SUBARU OF AMERICA, INC.

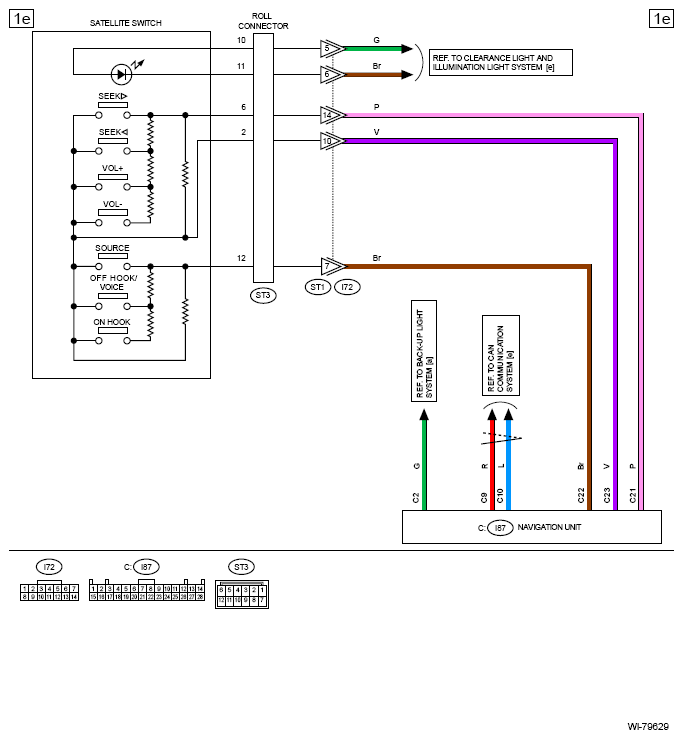

G13236314Courtesy of SUBARU OF AMERICA, INC.

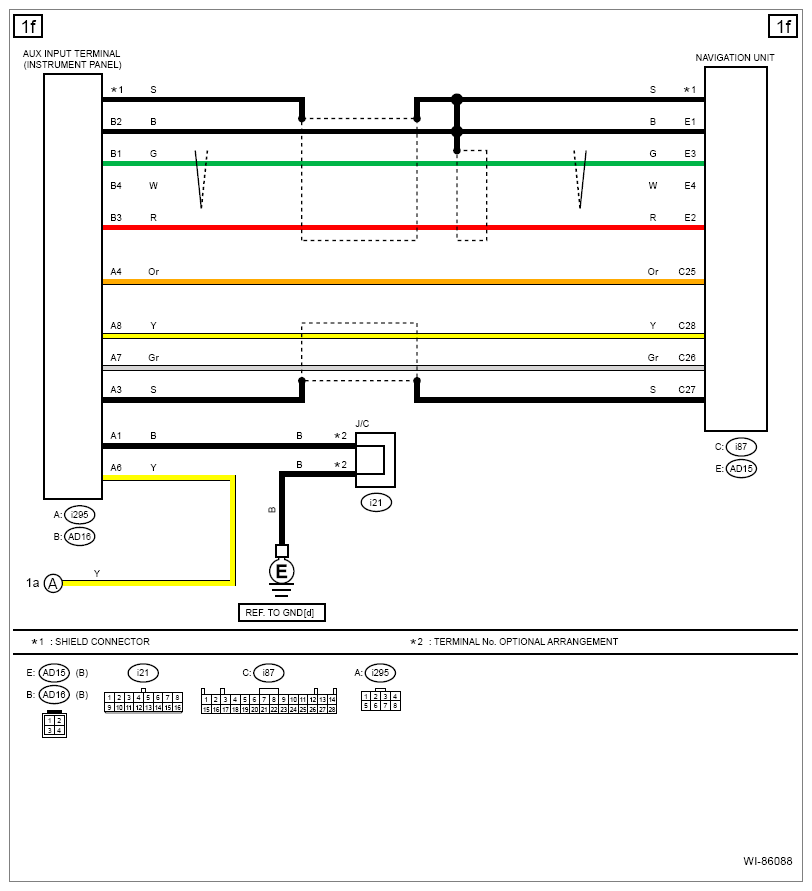

G13614160Courtesy of SUBARU OF AMERICA, INC.
G13236316Courtesy of SUBARU OF AMERICA, INC.

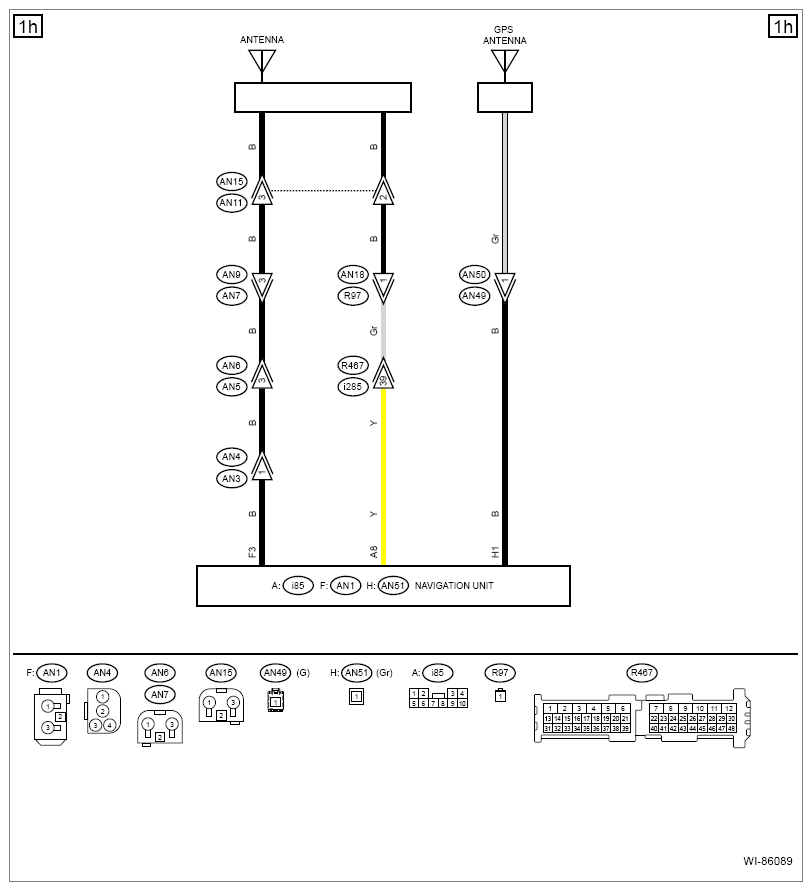

G13614162Courtesy of SUBARU OF AMERICA, INC.
