Subaru
>>
2020
>>
Crosstrek Limited
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except HEV)
>>
Ground Circuit
>>
Wiring Diagram

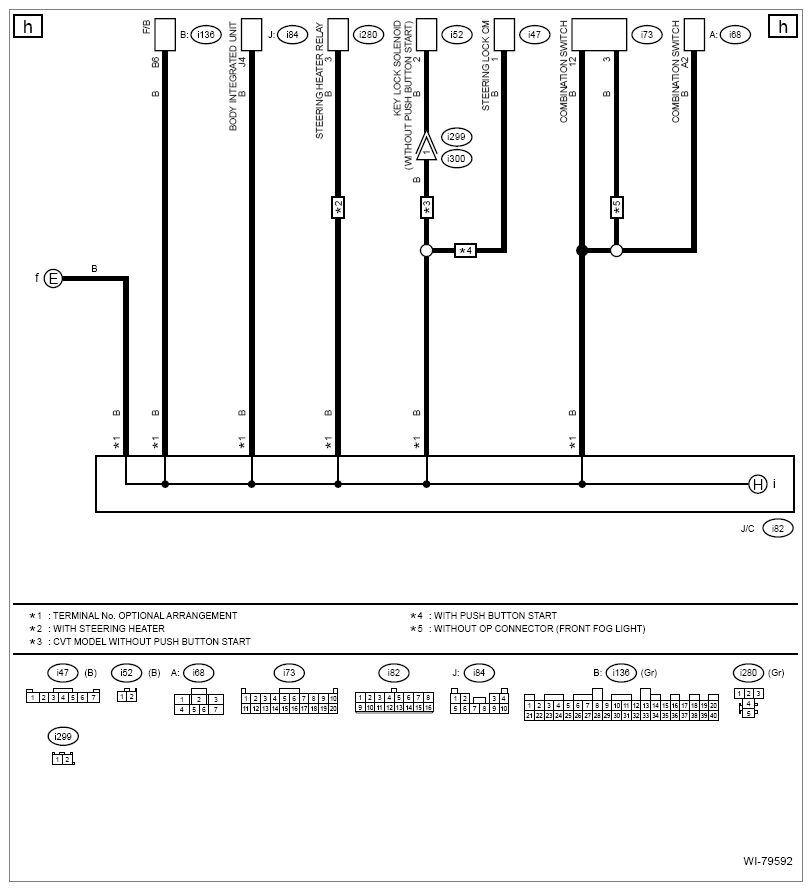

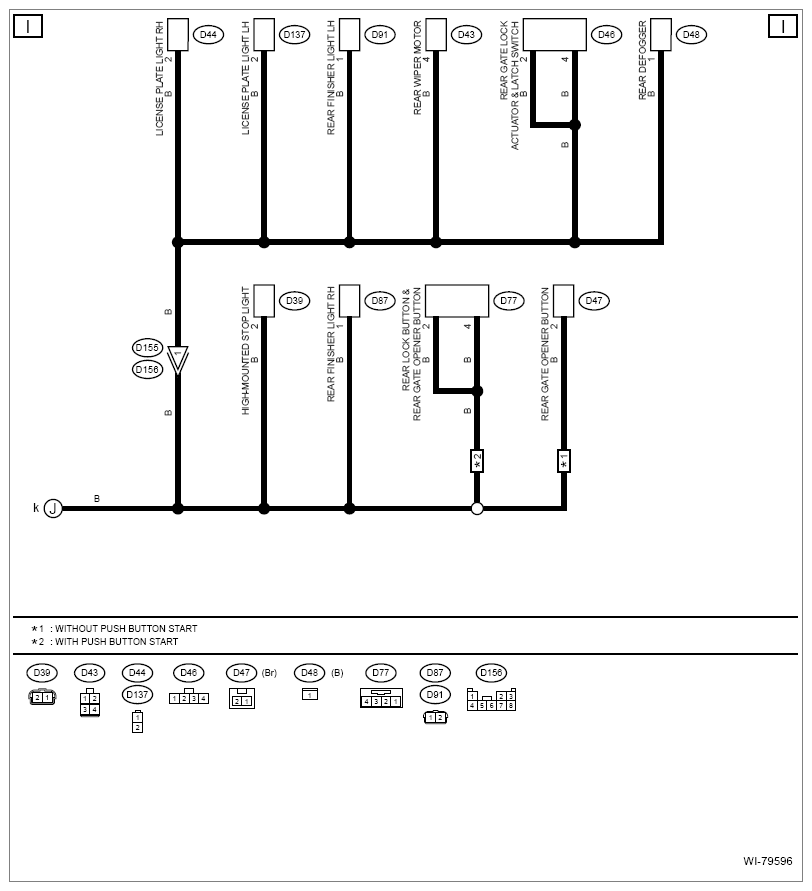

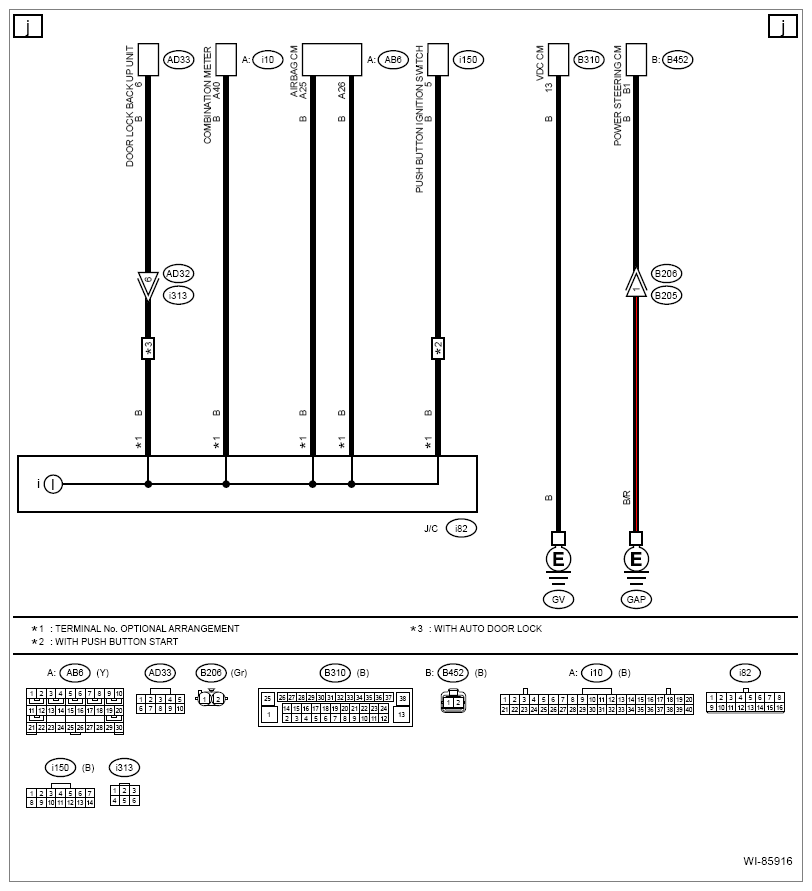

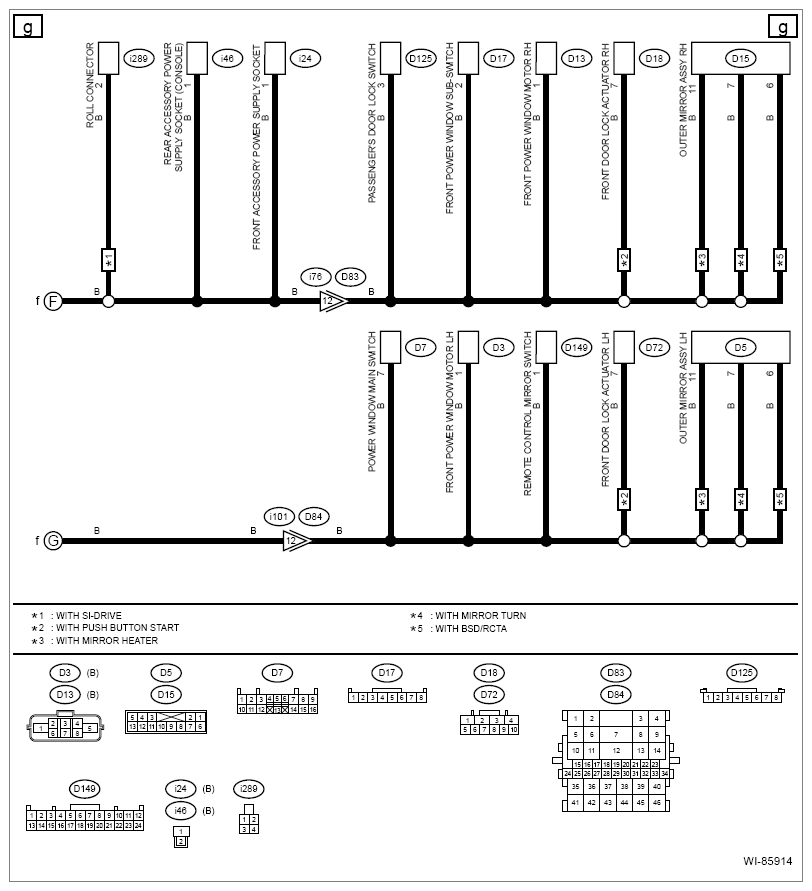

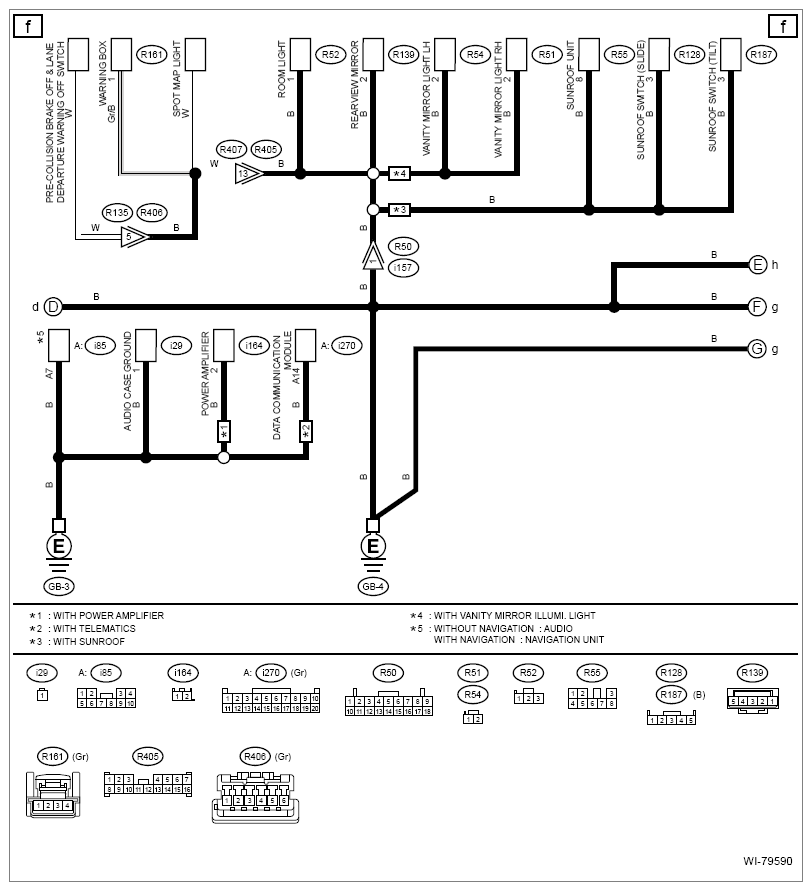

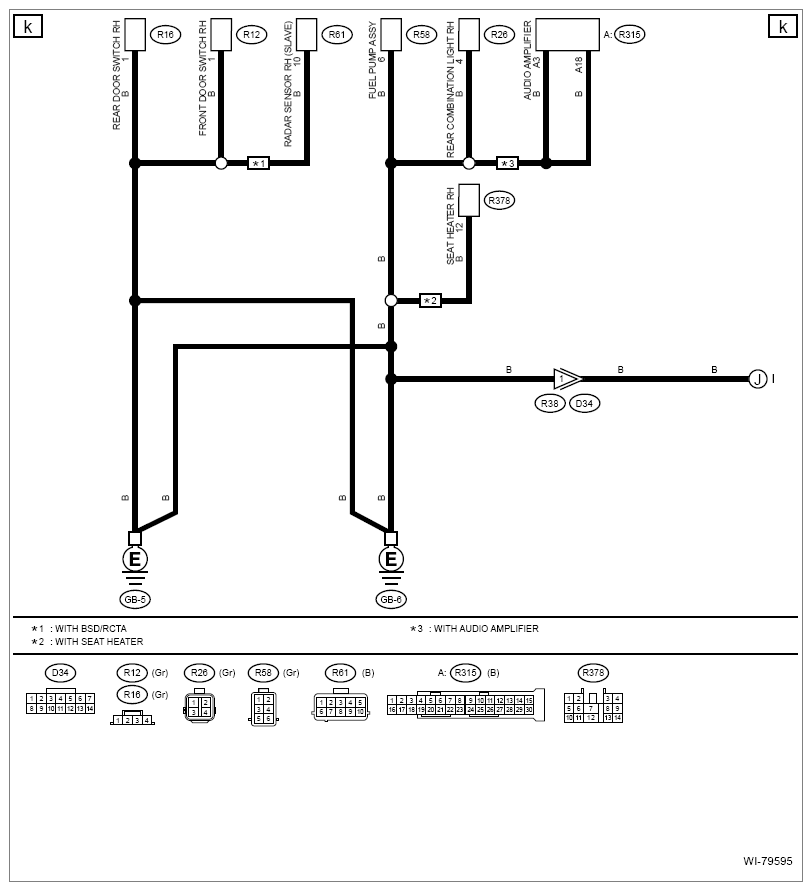

Ground Circuit: Wiring Diagram
