Passenger Room Side

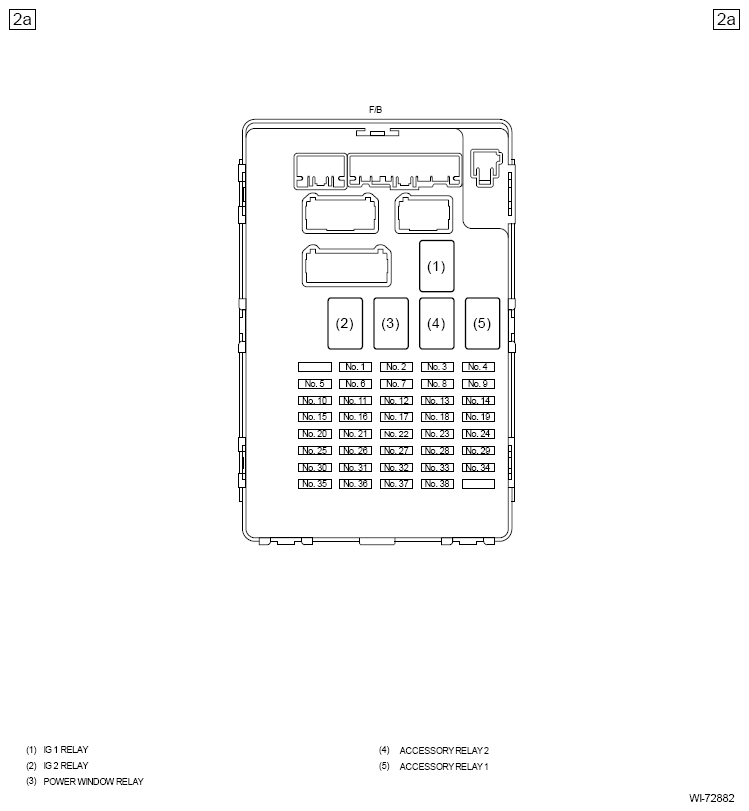

Courtesy of SUBARU OF AMERICA, INC. PASSENGER ROOM RELAY IDENTIFICATION (1 OF 2)
| Relay Description |
| IG 1 Relay |
| IG 2 Relay |
| Power Window Relay |
| Accessory Relay 2 |
| Accessory Relay 1 |
Courtesy of SUBARU OF AMERICA, INC. PASSENGER ROOM RELAY IDENTIFICATION (2 OF 2)
| Relay Description |
| Steering Heater Relay |
 Courtesy of SUBARU OF AMERICA, INC.
|
| Pole |
Fuse rating |
Connecting to |
| 1.6 |
- |
- |
| 2.7 |
7.5A |
Body integrated unit (lock) |
| Front door lock actuator LH (unlock) |
| 3.8 |
7.5A |
Front unlock relay (lock) |
| Front door lock actuator RH (unlock) |
| Rear door lock actuator RH (unlock) |
| 4.9 |
7.5A |
Front unlock relay (lock) |
| Rear door lock actuator LH (unlock) |
| 5.10 |
- |
- |
