Front Fog Light System: Wiring Diagram

G13614102

Courtesy of SUBARU OF AMERICA, INC.

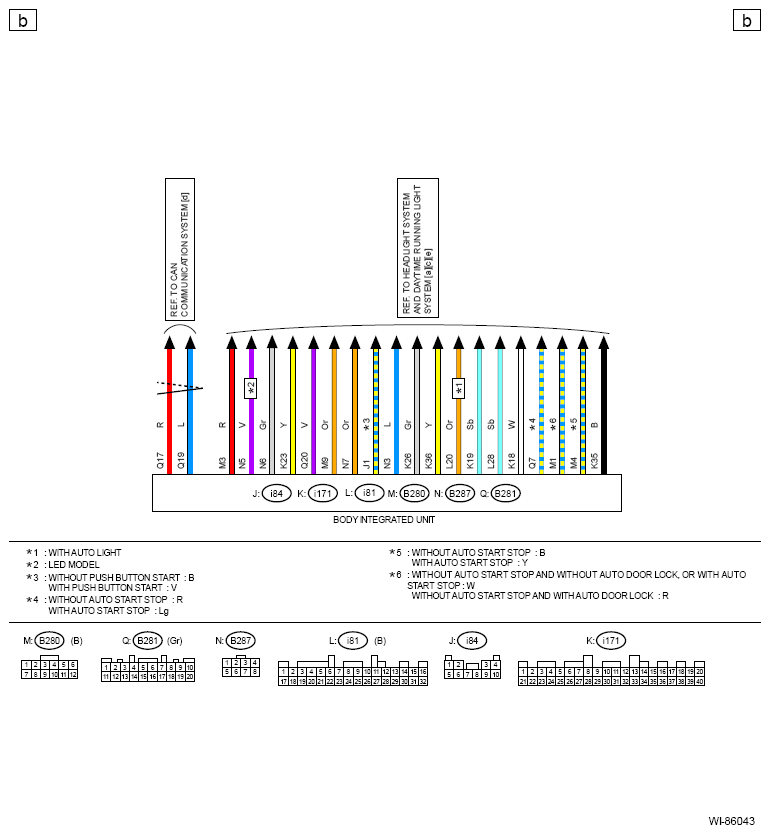

G13614103

Courtesy of SUBARU OF AMERICA, INC.

G13614104

Courtesy of SUBARU OF AMERICA, INC.
