CVT Control System: Wiring Diagram

G13614022Courtesy of SUBARU OF AMERICA, INC.
G13614023Courtesy of SUBARU OF AMERICA, INC.

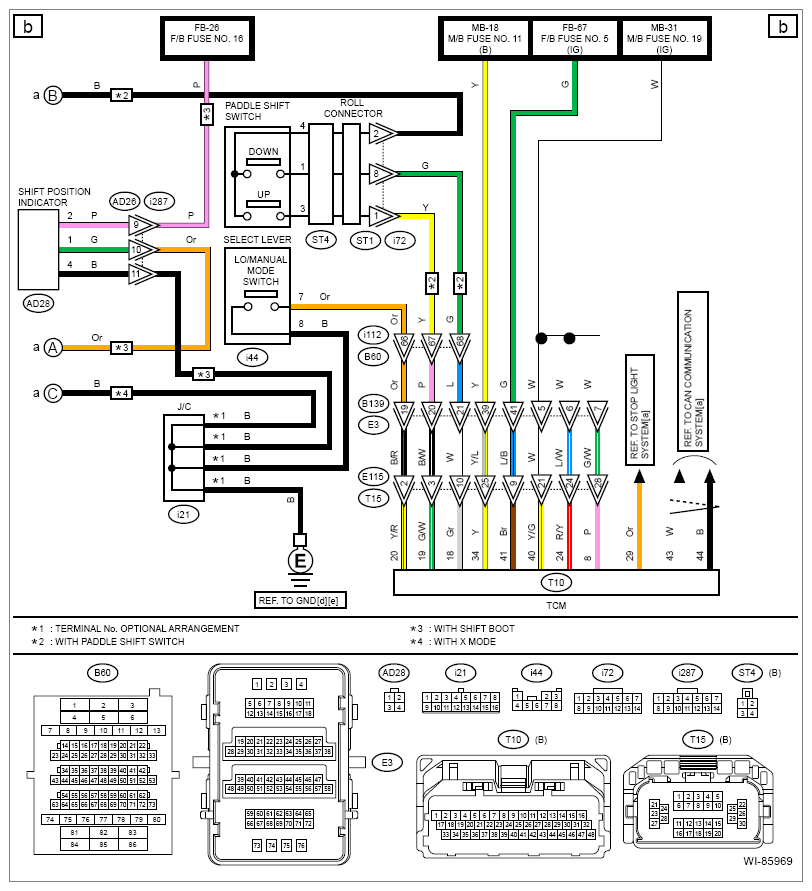

G13614024Courtesy of SUBARU OF AMERICA, INC.

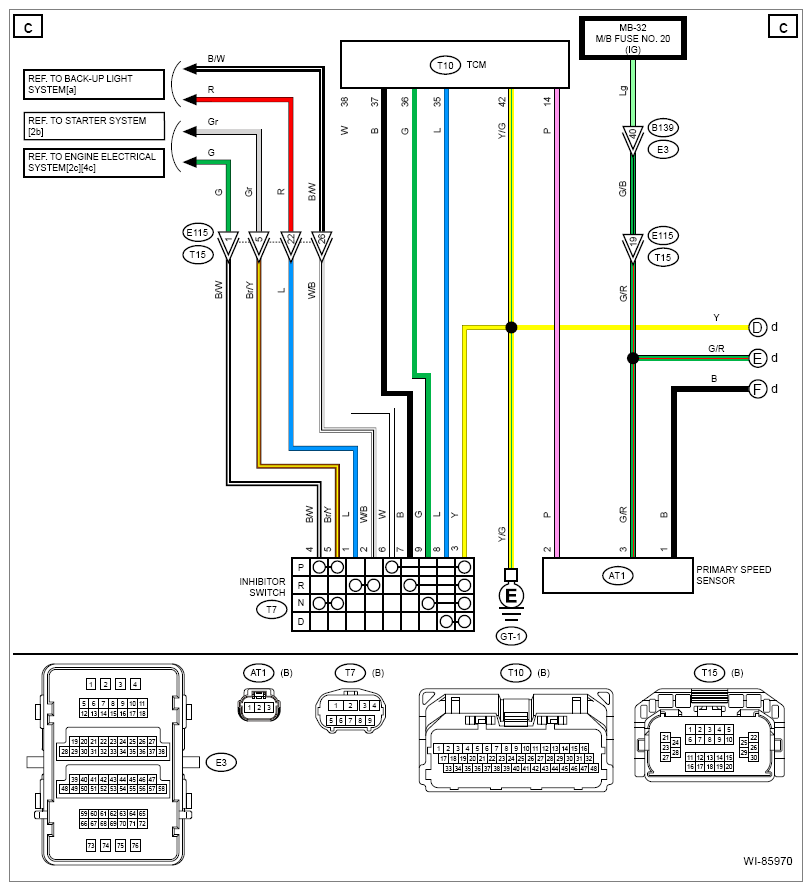

G13614025Courtesy of SUBARU OF AMERICA, INC.
G13614026Courtesy of SUBARU OF AMERICA, INC.
G13614027Courtesy of SUBARU OF AMERICA, INC.
G13614028Courtesy of SUBARU OF AMERICA, INC.

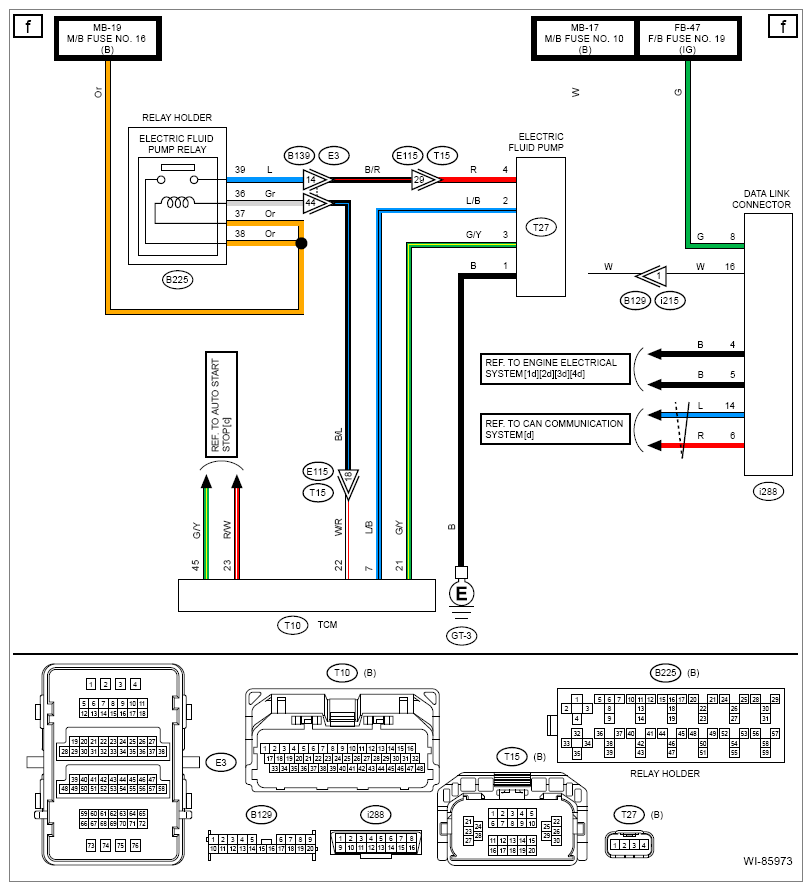

G13614029Courtesy of SUBARU OF AMERICA, INC.
