Roof Rail: Removal

  1. Disconnect the ground terminal from the 12V engine restart battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Remove the trim panel - roof assembly. Refer to EXTERIOR/INTERIOR TRIM>ROOF TRIM>REMOVAL .
  3. Remove the bolts (2 places) securing the curtain airbag module.
    CAUTION:
    • Do not remove the clips securing the curtain airbag module. If any of the clips are removed, the curtain airbag module may not deploy properly in collision.

      If the clip is removed, replace the curtain airbag module assembly.

    • Before handling the airbag system components, refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
    • Be careful not to damage the curtain airbag module during removal.
    G12399118Courtesy of SUBARU OF AMERICA, INC.
    G12399119Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the six attachment nuts and remove the roof rail.
    • Except for hybrid model

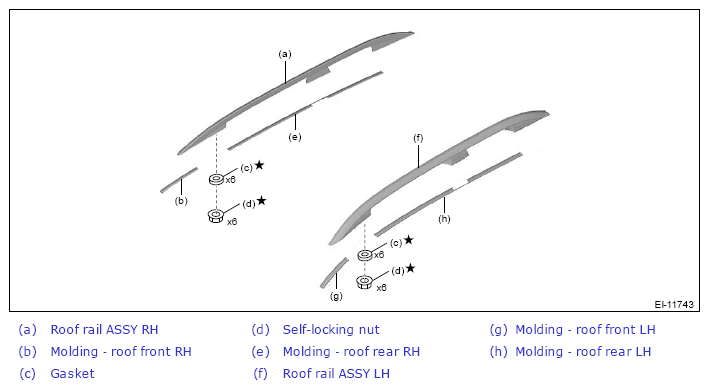

      G13606994Courtesy of SUBARU OF AMERICA, INC.
    • Hybrid model

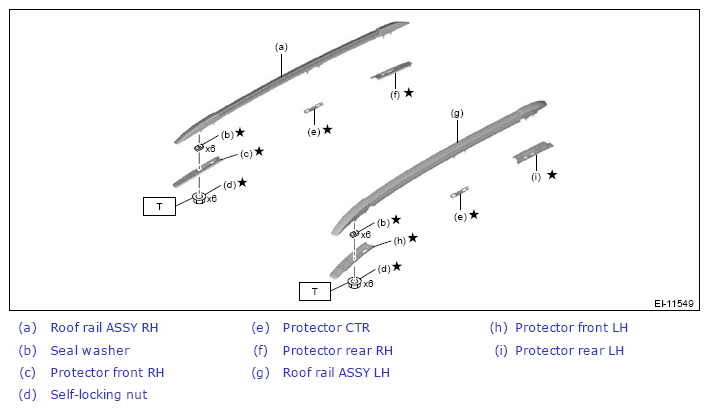

      G13606995Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the gasket. (Except for hybrid model)
  6. Remove the protector and seal washer. (Hybrid model)
