Primary Pulley & Secondary Pulley, VARIATOR Chain And Reduction Drive Gear
WARNING: This page is about a different variant/trim than selected.

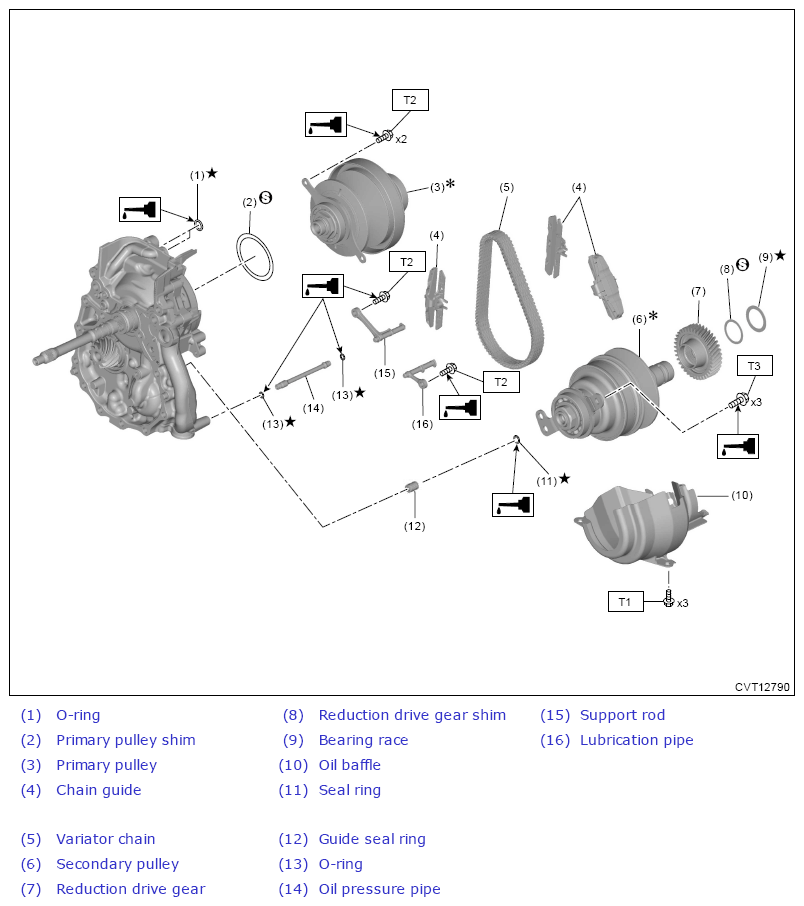

Fig 1: Primary Pulley & Secondary Pulley, Variator Chain And Reduction Drive Gear Components (With Torque Specifications)
Tightening torque: N.m (kgf-m, ft-lb)
T1: 16 (1.6, 11.8)
T2: 21 (2.1, 15.5)
T3: Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) s505>Primary Pulley & Secondary Pulley s505200>INSTALLATION s505200a11 .
*: The primary pulley and secondary pulley are set parts.
