CVTF Cooler (With Warmer Function): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
  • If CVTF and engine coolant is spilt over the engine or the exhaust pipe, completely wipe it off to avoid emission of smoke or causing a fire.
  1. Drain engine coolant. Ref. to COOLING (H4DO (EXCEPT FOR HEV))>ENGINE COOLANT>REPLACEMENT .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G11252777Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the CVTF cooler hose and the water hose.
    NOTE: Prepare the container for draining of engine oil.

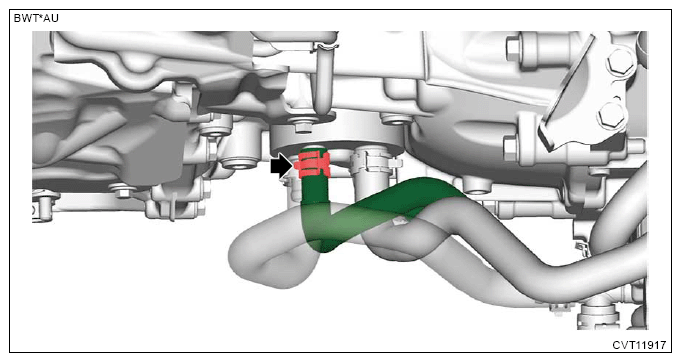

    1. Disconnect the CVTF cooler hose.
      G13603269Courtesy of SUBARU OF AMERICA, INC.

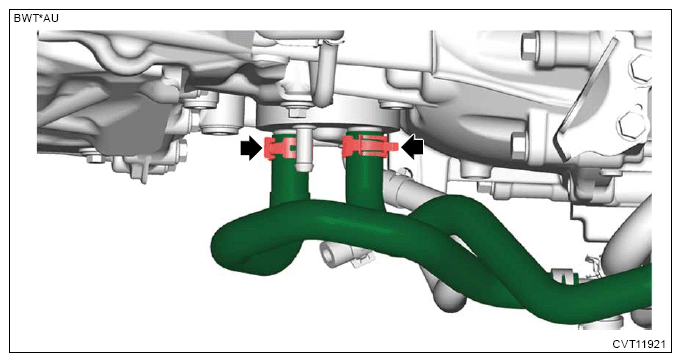

    2. Disconnect the water hose (inlet) and water hose (outlet).
      G13603270Courtesy of SUBARU OF AMERICA, INC.

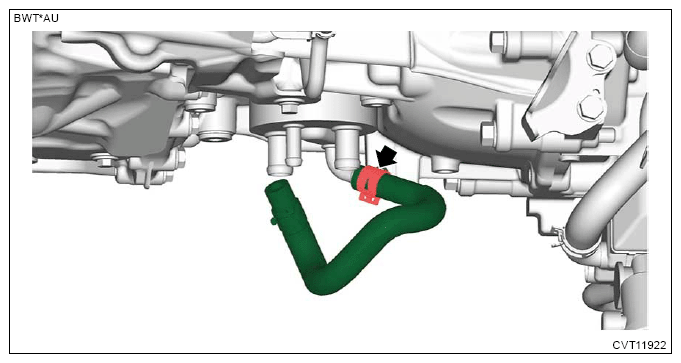

    3. Remove the CVTF cooler hose.
    G13603271Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the CVTF cooler (with warmer feature).
    NOTE: Prepare the container for draining of engine oil.
    G13603115Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the O-rings.
    G13603116Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the water hose (inlet).
NOTE: Perform this procedure only when required.
G13224722Courtesy of SUBARU OF AMERICA, INC.
