Ground Short Inspection (P-Can)

WARNING: This page is about a different variant/trim than selected.

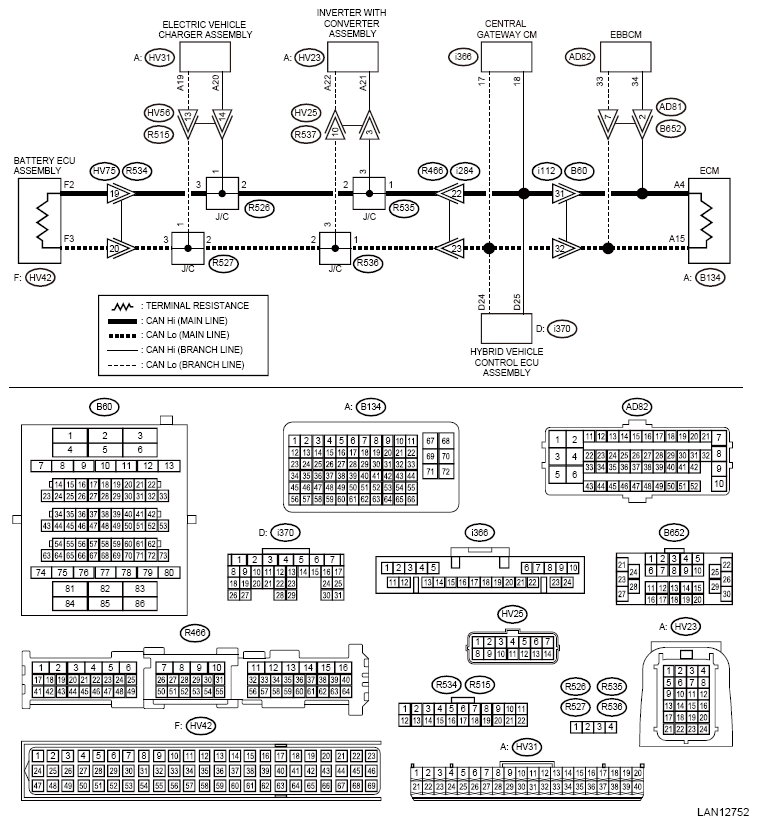

Wiring diagram:

CAN communication system Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV))>CAN COMMUNICATION SYSTEM>WIRING DIAGRAM .

G13617058

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Main wiring harness or related lines may be shorted to ground, or shorted to ground in one of the control modules.

CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS .
1. Turn the ignition switch to OFF.
2. Disconnect the ECM connector.
3. Using a tester, measure the resistance between ECM connector and chassis ground.
  Connector & terminal

  (B134) No. 4 - Chassis ground:

  (B134) No. 15 - Chassis ground:
Is the resistance less than 10 Ω?

Yes : Go to 2.

No : Currently, it is normal.
CHECK CONTROL MODULE .
With the tester connected, disconnect control module.

Connector & terminal

(B134) No. 4 - Chassis ground:

(B134) No. 15 - Chassis ground:

Did the resistance change to 10 Ω or more?

Yes : Replace the control module whose resistance has changed.

No : Repair or replace the short circuit of the main wiring harness or related lines between ECM and Body Control Module.
