Upper Arm: Removal

NOTE: This procedure is only for non-hybrid models. For hybrid models, perform the procedure by referring to the procedure for non-hybrid models.
  1. Release the parking brake.
  2. Using the Subaru Select Monitor, go to the brake maintenance mode according to the display screen. (Hybrid model) Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
  3. Disconnect the ground terminal from 12V engine restart battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  4. Lift up the vehicle, and then remove the rear wheels.
  5. Remove the rear suspension assembly. Ref. to REAR SUSPENSION>SUB FRAME>REMOVAL .

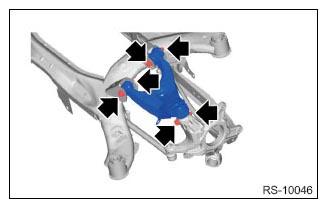

  6. Remove the rear upper arm assembly.
G11253879Courtesy of SUBARU OF AMERICA, INC.
