Trailing Link: Removal

  1. Lift up the vehicle, and then remove the rear wheels.

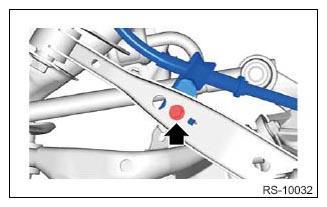

  2. Remove the cable assembly - parking brake bracket.
    G11253847Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolts and nuts, and then remove the trailing link.
    • Impreza model
      G12400640Courtesy of SUBARU OF AMERICA, INC.

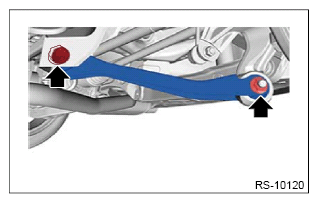

    • Crosstrek model
G12400641Courtesy of SUBARU OF AMERICA, INC.
