Seat Belt Outer - Front

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  • Airbag system satellite safing sensor is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
  • Do not drop or subject the pretensioner to any impact.
  • Since the pretensioner and bracket are integrated as a unit, do not disassemble them.
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the 12V engine restart battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE:
    • For the hybrid model, disconnect the battery negative terminal.
    • For models with the power seat, move the seat to the front-most position before disconnecting the ground terminal from the 12V engine restart battery sensor or disconnecting the battery negative terminal.
  3. Tilt the front seat backrest assembly forward, and move the front seat all the way forward.
    CAUTION:
    • For the hybrid model, disconnect the battery negative terminal.
    • For the power seat model, move the seat, disconnect the ground terminal from the 12V engine restart battery sensor or disconnect the battery negative terminal, and then wait for 60 seconds or more before starting work.
  4. Remove the rear seat cushion assembly. Ref. to SEATS>REAR SEAT>REMOVAL .
  5. Remove the cover side sill - front INN, cover side sill - rear INN, and trim panel - center pillar LWR. (On the side where seat belt assembly is removed) Ref. to EXTERIOR/INTERIOR TRIM>LOWER INNER TRIM>REMOVAL .
  6. Remove the seat belt outer - front.
    1. Turn over the floor mat to disconnect the belt tension sensor connector. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>PASSENGER'S AIRBAG MODULE AND SEAT BELT PRETENSIONER .
      NOTE: Also disconnect the connector of the passenger's lap seat belt pretensioner. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>KNEE AIRBAG MODULE AND PASSENGER'S LAP SEAT BELT PRETENSIONER .
    2. Remove the cover through, and remove the seat belt anchor bolt.
    3. Remove the bolt to remove the seat belt retractor.
    4. Remove the lower anchor bolt, and remove the seat belt outer - front.

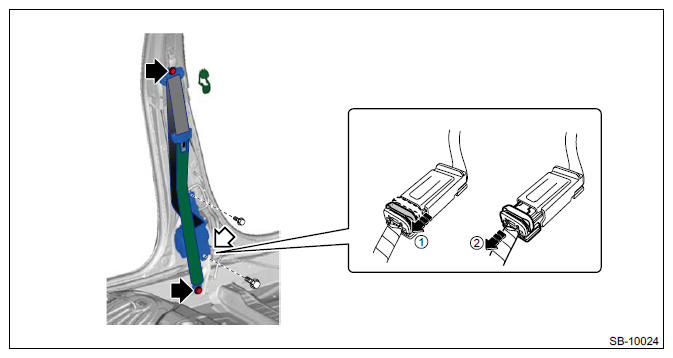

    • Driver's side
      G11245883Courtesy of SUBARU OF AMERICA, INC.

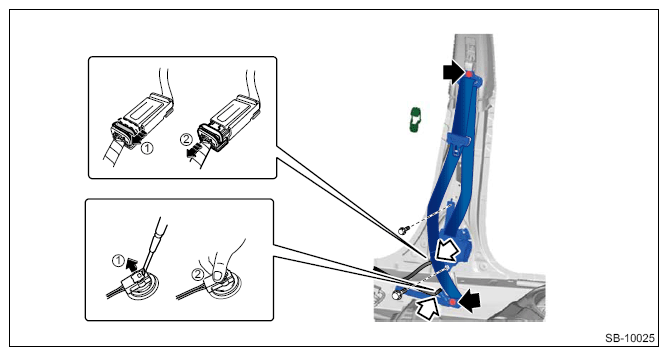

    • Passenger's side
      G13605352Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the adjuster assembly - seat belt.
    1. Remove the bolt on the lower side of the trim panel - center pillar UPR.
    2. Remove the clip by pulling the upper part of the trim toward you, and while lowering the entire trim, remove the trim panel - center pillar UPR.
      CAUTION: Do not reuse the upper clips of the trim panel - center pillar UPR. Once the clip is removed, its holding force is reduced. Be sure to replace it with a new clip.
      G12398523Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the bolts, and then remove the adjuster assembly - seat belt.
      G10317048Courtesy of SUBARU OF AMERICA, INC.
