Front Sub Sensor: Removal

CAUTION: Before handling the airbag system components, refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the 12V engine restart battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  3. Remove the front sub sensor.

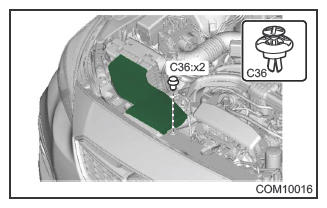

    1. Remove the clips and remove the air intake duct. (When removing the sensor RH)
      G11245816Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the bolt, and then detach the front sub sensor.
    3. Disconnect the connector of front sub sensor. Refer to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>FRONT SUB SENSOR AND SATELLITE SAFING SENSOR .
      G11245817Courtesy of SUBARU OF AMERICA, INC.
