How To Use Probe

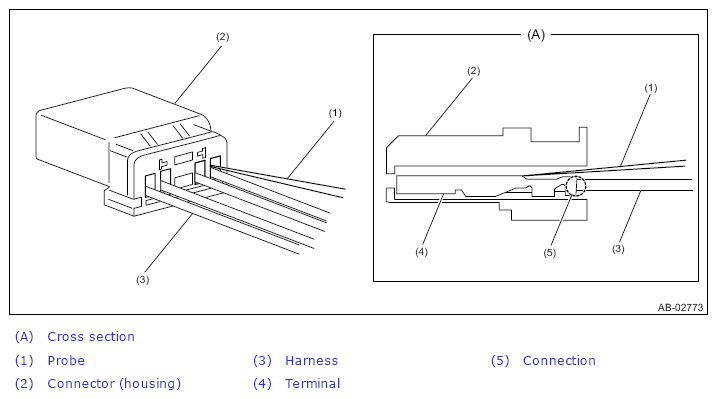

Insert the probe into the harness hole, and contact it with the terminal.

G13616512Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
  • Do not insert the probe forcibly.
  • Be careful not to contact it to the connection (5) between the terminal and harness. (Harness will come off easily from connector.)
