X MODE Switch: Inspection

WARNING: This page is about a different variant/trim than selected.

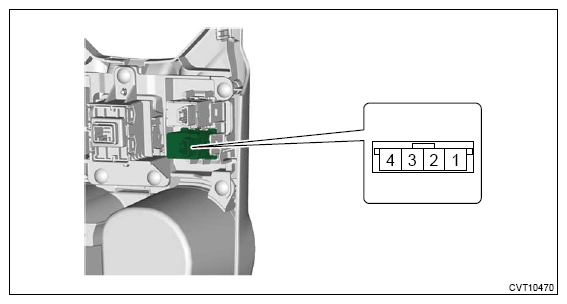

G13233241Courtesy of SUBARU OF AMERICA, INC.
  1. Check the resistance between connector terminals.
    Terminal No. Inspection conditions Standard
    1 - 4 OFF (when measured without operating the switch) Approx. 1 MΩ
    ON (when measured with the switch held down) Less than 1 Ω
  2. Apply battery voltage between the connector terminals to check lighting status of illumination.
    CAUTION: When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.
    Incorrect polarity connection may cause LED damage inside the switch.
    Terminal No. Inspection conditions Specifications
    2 (+) - 3 (-) Apply battery voltage. Light ON
