Transmission Rear CROSSMEMBER And Rear Cushion Rubber

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .
  3. Remove the center exhaust cover.

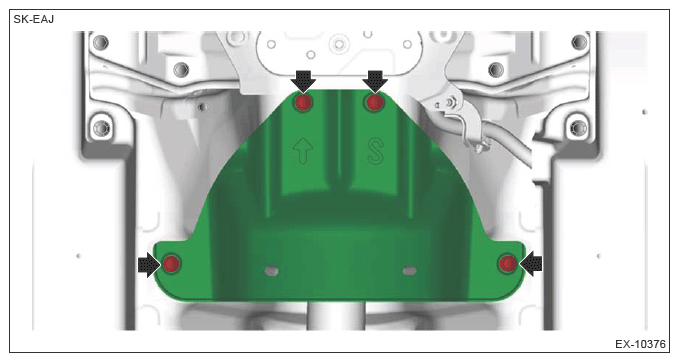

    G13604010Courtesy of SUBARU OF AMERICA, INC.
  4. Set the transmission jack under the transmission.
    CAUTION: Make sure that the support plates of transmission jack do not touch the oil pan.
    NOTE: Place wooden block or similar items at the transmission rear to adjust the height.
  5. Remove the clip which holds the inhibitor harness to the transmission rear crossmember.

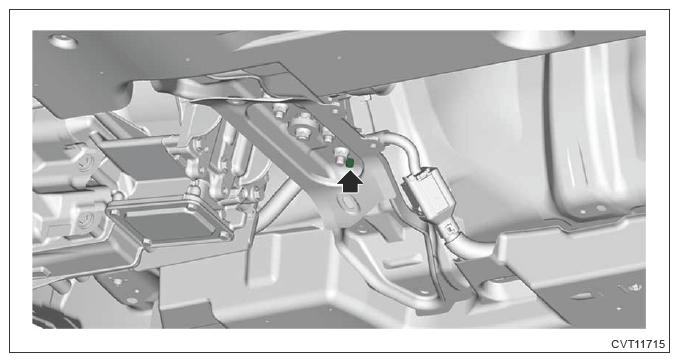

    G13604011Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the transmission rear crossmember.

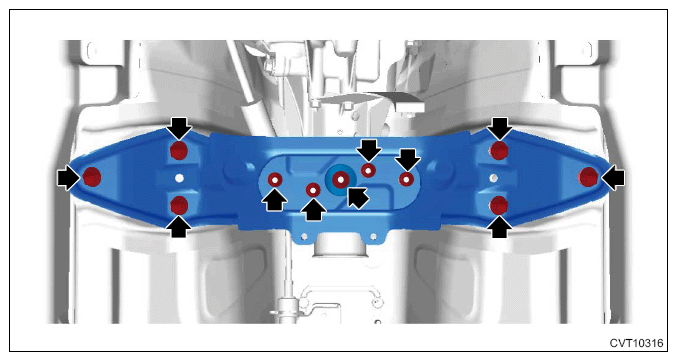

    G13604012Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the rear cushion rubber.

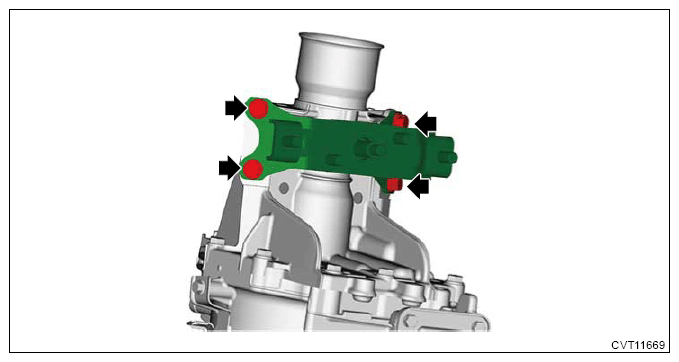

    G13604013Courtesy of SUBARU OF AMERICA, INC.
