Pitching Stopper

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .

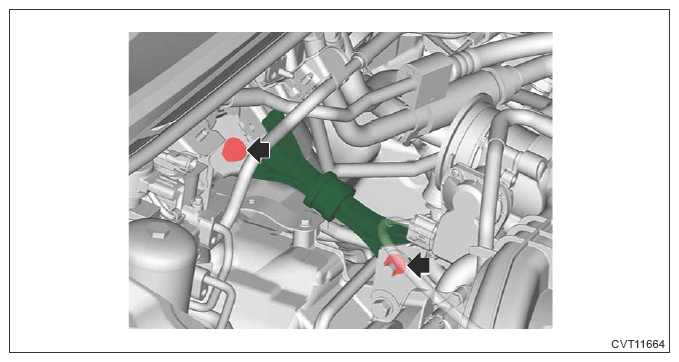

  2. Remove the pitching stopper.
    G13604008Courtesy of SUBARU OF AMERICA, INC.

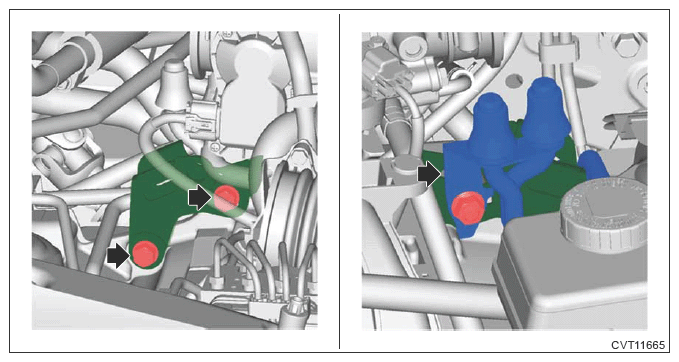

  3. Remove the air breather hose and pitching stopper bracket.
    NOTE: Perform this procedure only when required.
    G13604009Courtesy of SUBARU OF AMERICA, INC.
