Transmission Rear CROSSMEMBER And Rear Cushion Rubber
WARNING: This page is about a different variant/trim than selected.
- Install the rear cushion rubber.
Tightening torque:
40 N.m (4.1 kgf-m, 29.5 ft-lb)
- Install the transmission rear crossmember.
Tightening torque:
T1: 35 N.m (3.6 kgf-m, 25.8 ft-lb)
T2: 70 N.m (7.1 kgf-m, 51.6 ft-lb)

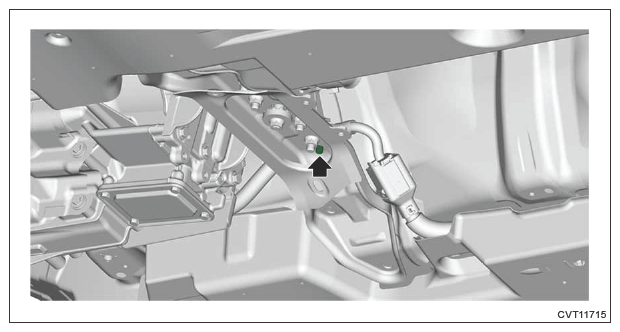

- Install the clip which holds the inhibitor harness to the transmission rear crossmember.
- Remove the transmission jack.
- Install the center exhaust cover.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>INSTALLATION .
- Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
