Power Connect Cover

WARNING: This page is about a different variant/trim than selected.
WARNING: The hybrid system includes a high voltage circuit. Mishandling could cause accidents such as electric shock or leak. Always check "WARNING (HYBRID SYSTEM)" and perform the proper operation. Ref. to PRECAUTION/WARNING>Warning (HYBRID SYSTEM) .
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the service disconnect plug. Ref. to HYBRID ELECTRIC VEHICLE>SERVICE PLUG>REMOVAL .
    WARNING: After removal of the service disconnect plug, the condenser inside the inverter still has been charged to a high voltage. Wait for at least 10 minutes before handling the high voltage components, wiring, terminals or connectors.
  3. Remove the bolts which secure the power connect cover.
    WARNING: Be sure to wear insulated gloves.

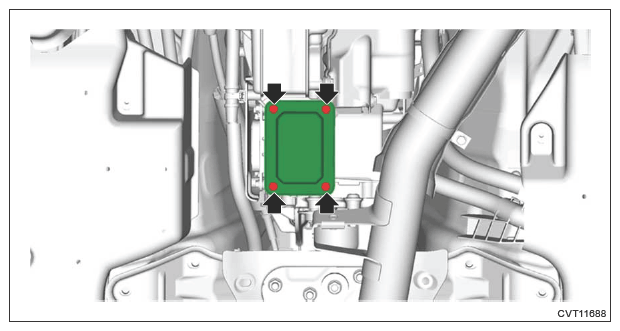

    G13233279Courtesy of SUBARU OF AMERICA, INC.
  4. Insert an oil pan seal cutter into the gap between the power connect cover and transmission case, and remove the power connect cover.
    WARNING: Be sure to wear insulated gloves.
    CAUTION:
    • Do not use the tools other than the oil pan seal cutter in order to prevent damaging the power connect cover and the transmission case.
    • Do not twist with excessive force. The power connect cover may be deformed.
  5. Remove the liquid gasket from the power connect cover and the transmission case.
    WARNING: Be sure to wear insulated gloves.
