Flywheel & Differential

WARNING: This page is about a different variant/trim than selected.

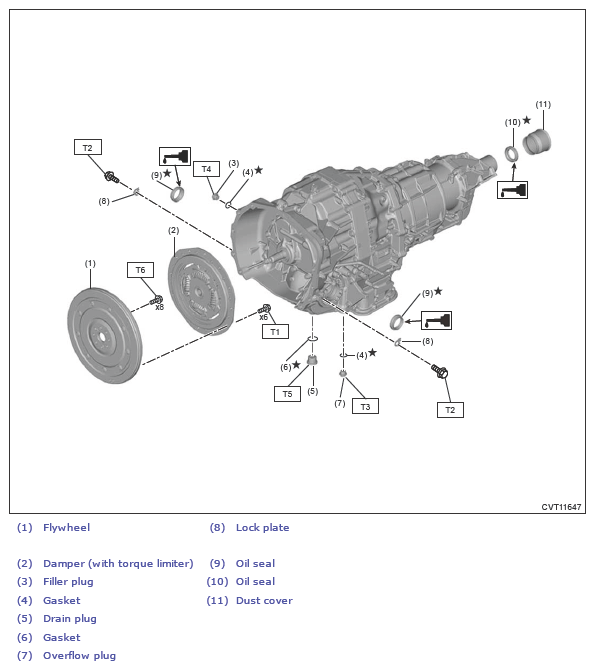

Fig 1: Flywheel & Differential Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 24 (2.4, 17.7)

T2: 25 (2.5, 18.4)

T3: 26 (2.7, 19.2)

T4: 35 (3.6, 25.8)

T5: 70 (7.1, 51.6)
