CVTF Cooler Pipe & Hose

WARNING: This page is about a different variant/trim than selected.

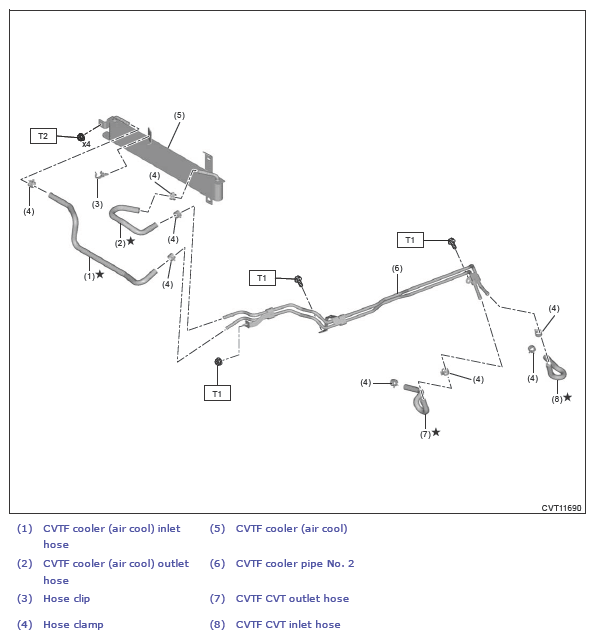

Fig 1: CVTF Cooler Pipe & Hose Components (With Torque Specifications)
G13603943Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TH2A)>CVTF COOLER (AIR COOLING)>INSTALLATION .
