Air Breather Hose & Transmission Cover

WARNING: This page is about a different variant/trim than selected.

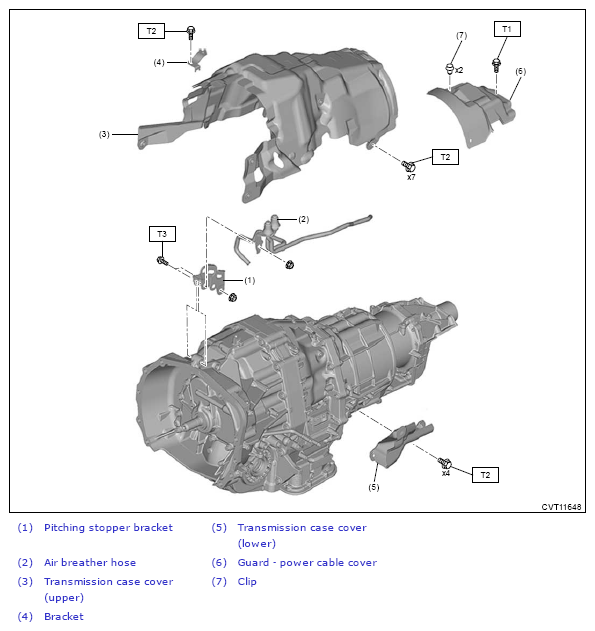

Fig 1: Air Breather Hose & Transmission Cover Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7 (0.7, 5.2)

T2: 8 (0.8, 5.9)

T3: 41 (4.2, 30.2)
