AWD Control Module

WARNING: This page is about a different variant/trim than selected.

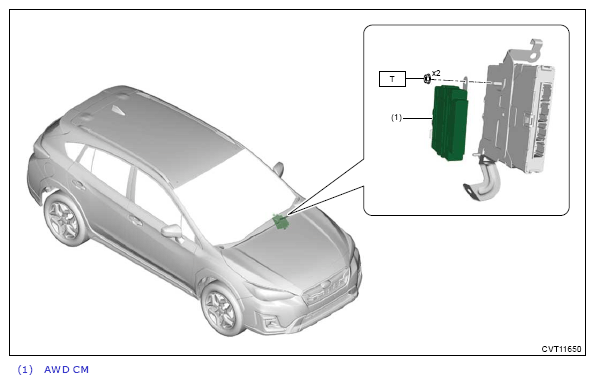

Fig 1: AWD CM Component (With Torque Specifications)
G13603944Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 5 (0.5, 3.7)
