Crossmember And Cushion Rubber

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the crossmember support - rear.
    G11256105Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the front exhaust pipe. Refer to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .
  5. Remove the center exhaust cover.
    G11254834Courtesy of SUBARU OF AMERICA, INC.
  6. Set the transmission jack.
    CAUTION: Always support the transmission case with a transmission jack.
    G09482515Courtesy of SUBARU OF AMERICA, INC.

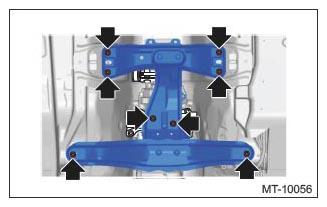

  7. Remove the front crossmember and the rear crossmember.
    G11256143Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the transmission cushion rubber.
