Pitching Stopper
WARNING: This page is about a different variant/trim than selected.

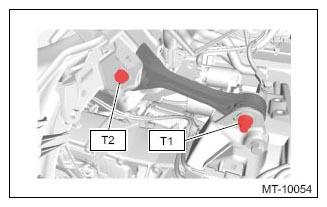

- Install the pitching stopper.
Tightening torque:
T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)
T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)
- Install the air intake boot. Refer to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
- Connect the ground terminal to 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
