Shifter Fork And Rod: Inspection
WARNING: This page is about a different variant/trim than selected.
- Check the shifter fork and fork rod for damage. Replace if it is damaged.
- Gearshift mechanism
Repair or replace the gearshift mechanism if excessively worn, bent or defective in any way.
- Inspect the clearance (a) between 2nd driven gear and coupling sleeve. If it is outside the standard value, replace the shifter fork as required.
Specification:
7.4 - 7.8 mm (0.291 - 0.307 in)
1st-2nd shifter fork Part No. Mark Contents 32804AA120 1 Approaches 2nd gear by 0.2 mm (0.008 in). 32804AA130 No mark Specification 32804AA140 2 Approaches 1st gear by 0.2 mm (0.008 in). - Inspect the clearances (a) and (b) between the 3rd, 4th drive gear and the coupling sleeve. If it is outside the standard value, replace the shifter fork as required.
Specification:
7.5 - 7.8 mm (0.295 - 0.307 in)
3rd-4th shifter fork Part No. Mark Contents 32810AA061 1 Approaches 4th gear by 0.2 mm (0.008 in). 32810AA071 No mark Specification 32810AA101 3 Approaches 3rd gear by 0.2 mm (0.008 in). - Inspect the clearances (a) and (b) between the 5th, 6th drive gear and the coupling sleeve. If it is outside the standard value, replace the shifter fork as required.
Specification:
7.5 - 7.8 mm (0.295 - 0.307 in)
5th-6th shifter fork Part No. Mark Contents 32940AA050 1 Approaches 5th gear by 0.2 mm (0.008 in). 32940AA060 No mark Specification 32940AA070 2 Approaches 6th gear by 0.2 mm (0.008 in). - Check the clearance (a) between the reverse idler gear and reverse coupling sleeve. If it is outside the standard value, replace the shifter fork as required.
Specification:
0.50 mm (0.020 in) or less

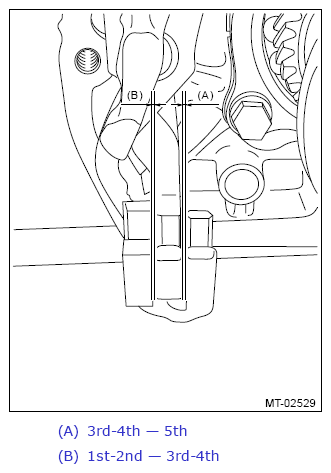

Reverse shifter fork Part No. Mark Contents 32941AA070 2 Approaches reverse idler gear by 0.3 mm (0.012 in). 32941AA060 No mark Specification 32941AA050 1 Approaches reverse idler gear No. 2 by 0.3 mm (0.012 in). - Inspect the rod end clearances (A) and (B). If any clearance is outside the standard value, replace the rod or fork as required.
Specification:
Clearance (A):
0.1 - 0.9 mm (0.004 - 0.035 in)
Clearance (B):
0.2 - 1.0 mm (0.008 - 0.039 in)
