Transmission Case

WARNING: This page is about a different variant/trim than selected.

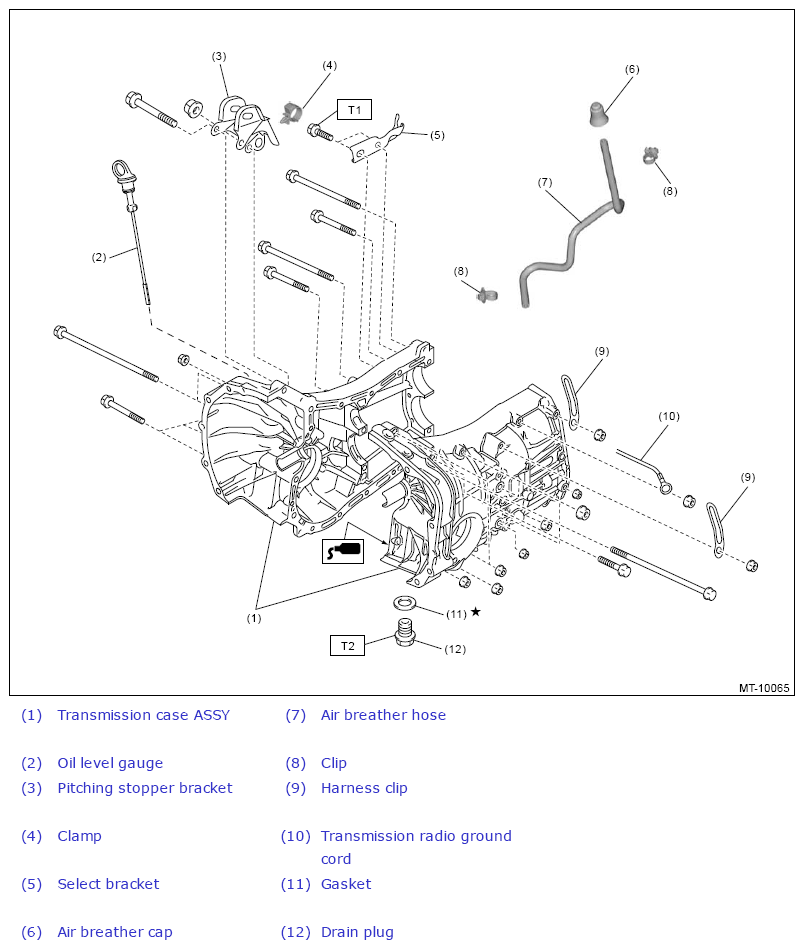

Fig 1: Exploded View Of Transmission Case Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 44 (4.5, 32.5) (aluminum gasket, silver)

70 (7.1, 51.6) (copper gasket, brown)

70 (7.1, 51.6) (metal gasket, black)

TRANSMISSION CASE TIGHTENING TORQUE SPECIFICATION

Courtesy of SUBARU OF AMERICA, INC.	Bolt No.	Bolt size mm	Tightening torque: N.m (kgf-m, ft-lb)
	(5)-(15)	8	25 (2.5, 18.4)
	(1)-(4) (16), (17)	10	40 (4.1, 29.5)
