Shifter Fork And Shifter Rod

WARNING: This page is about a different variant/trim than selected.

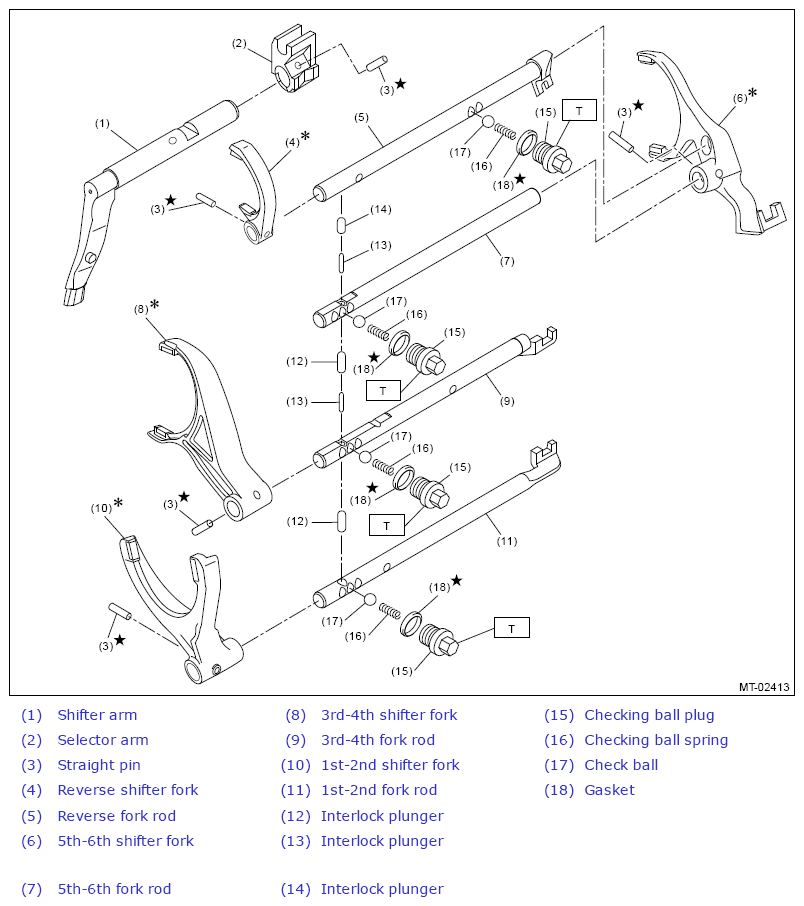

Fig 1: Exploded View Of Shifter Fork And Shifter Rod Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 20 (2.0, 14.8)
