Thrust Bearing Preload

WARNING: This page is about a different variant/trim than selected.

Select a suitable adjusting washer No. 1 so that dimension (H) will be zero in a visual check. Position the washer (20 x 31 x 4) and a new lock washer (20 x 31 x 2.3).
CAUTION: Make sure the lock washer is facing the correct direction.

Courtesy of SUBARU OF AMERICA, INC.

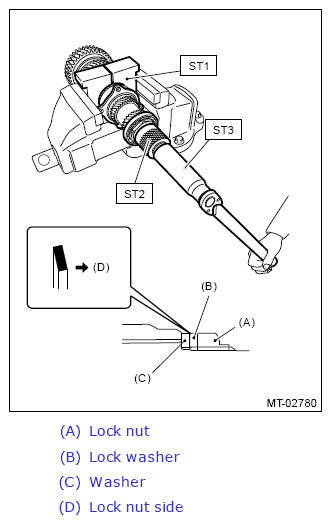

Tighten a new lock nuts using ST1, ST2 and ST3.
Tightening torque:

126 N.m (12.8 kgf-m, 92.9 ft-lb)

Preparation tool:

ST1: HOLDER (18680AA020)

ST2: HOLDER (18667AA020)

ST3: SOCKET (27) (18662AA010)

Courtesy of SUBARU OF AMERICA, INC.
After removing the ST (HOLDER) used in step 2), measure the starting torque using ST3 and a torque driver.
Specification:

0.3 - 0.8 N.m (0.03 - 0.08 kgf-m, 0.2 - 0.6 ft-lb)

Preparation tool:

ST1: HOLDER (18680AA020)

ST3: SOCKET (27) (18662AA010)

Courtesy of SUBARU OF AMERICA, INC.

If the starting torque is not within the standard value, select new adjusting washer No. 1 and recheck starting torque.

Courtesy of SUBARU OF AMERICA, INC.

Adjusting washer No. 1
Part No.	Thickness mm (in)
803025071	2.925 (0.1152)
803025072	2.950 (0.1161)
803025073	2.975 (0.1171)
803025074	3.000 (0.1181)
803025075	3.025 (0.1191)
803025076	3.050 (0.1201)
803025077	3.075 (0.1211)

If the standard starting torque cannot be obtained by the selection of adjusting washer No. 1, select adjusting washer No. 2 from the list below. Repeat steps 1 through 4 to adjust starting torque.

Courtesy of SUBARU OF AMERICA, INC.

Starting torque	Dimension H	Adjusting washer No. 2
Low	Small	Select thicker one.
High	Large	Select thinner one.

Adjusting washer No. 2
Part No.	Thickness mm (in)
803025070	2.850 (0.1122)
803025074	3.000 (0.1181)
803025078	3.150 (0.1240)

Recheck that the starting torque is within the standard value, and crimp the lock nut at two locations so that the dimension (B) becomes 20.1 mm (0.79 in) or less.
CAUTION: When crimping the lock nut, be careful not to crack it.

Courtesy of SUBARU OF AMERICA, INC.
