Air Breather Hose: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the air breather cap.

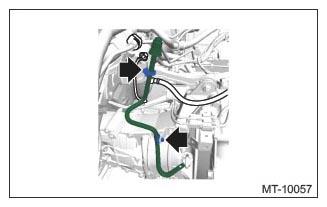

  2. Install the air breather hose.
    G11256178Courtesy of SUBARU OF AMERICA, INC.
  3. Install the air intake boot. Refer to INTAKE (INDUCTIONS) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
  4. Connect the ground terminal to 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
