Hybrid Powertrain Control Module: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY
.
- Remove the hybrid vehicle control ECU assembly.
- Disconnect the connector.

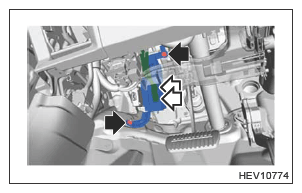

- Remove the bolts and nuts, and remove the hybrid vehicle control ECU assembly together with the AWD Control Module.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the nuts and remove the AWD CM from the hybrid vehicle control ECU assembly.
 Courtesy of SUBARU OF AMERICA, INC.
|
