Hybrid Vehicle Control ECU Assembly

WARNING: This page is about a different variant/trim than selected.

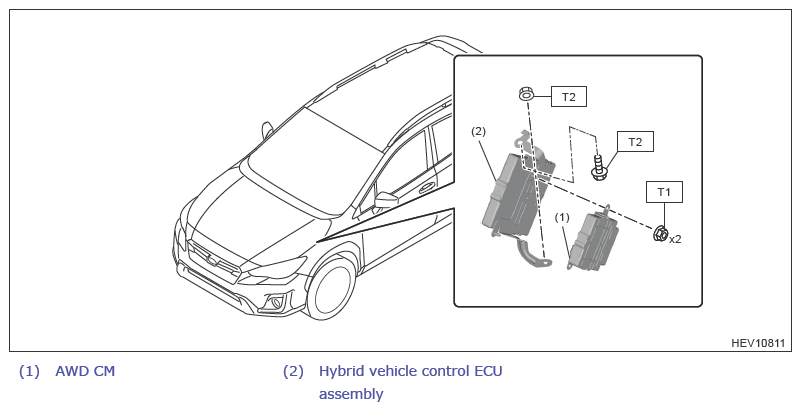

Fig 1: Hybrid Vehicle Control ECU Assembly Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 18 (1.8, 13.3)
