Charging Inlet

WARNING: This page is about a different variant/trim than selected.

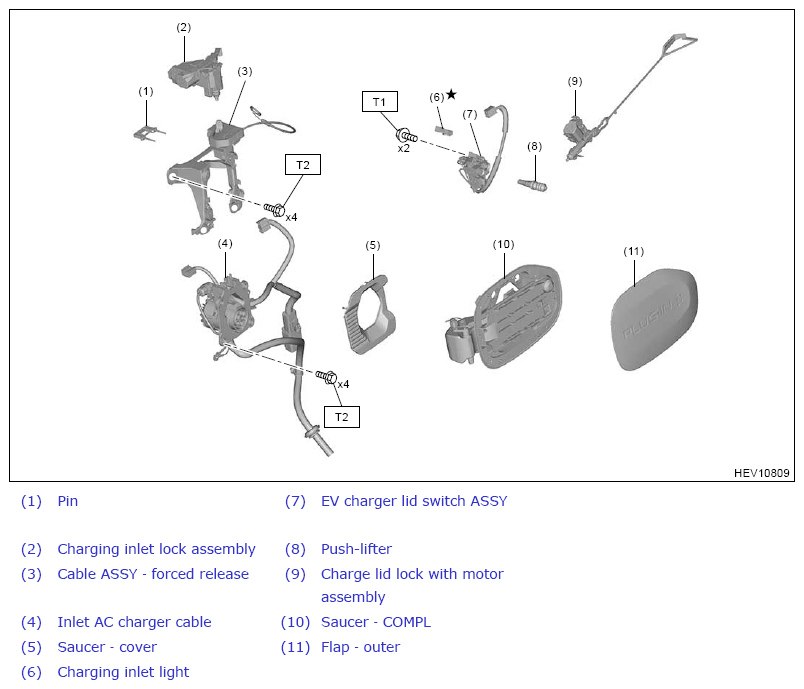

Fig 1: Charging Inlet Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.5 (0.5, 3.3)

T2: 7.5 (0.8, 5.5)
