Charging Inlet Door

WARNING: This page is about a different variant/trim than selected.

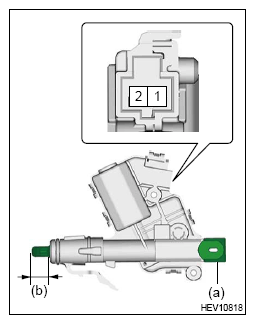

CHARGE LID LOCK WITH MOTOR ASSEMBLY

Check operation

Check the operation when battery voltage is applied to the connector terminal.

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Specification
1 (+) - 2 (-)	Apply battery voltage.	The shaft operates.

Check the shaft stroke (b) when lever (a) is operated.

Measurement range	Inspection conditions	Standard
Shaft stroke	When lever is operated	11 mm

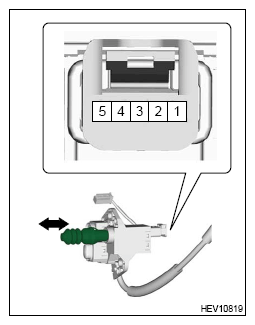

PUSH-LIFTER SWITCH

Inspect the resistance

Measure the resistance between connector terminals.

Preparation tool:

Circuit tester

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Standard
1 - 5	When the lifter is not pressed in (OFF)	10 kΩ or more
1 - 5	When the lifter is pressed in (ON)	Less than 1 Ω
2 - 4	When the lifter is not pressed in (OFF)	Less than 1 Ω
2 - 4	When the lifter is pressed in (ON)	10 kΩ or more

Replace the EV charger lid switch assembly if the inspection result is not within the standard value.

LID SWITCH

Check the charging connector lock/unlock switch.

Measure the resistance between connector terminals.

Preparation tool:

Circuit tester

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Standard
2 - 4	When the lock/unlock switch is pressed	Less than 50 Ω
2 - 4	When the lock/unlock switch is not pressed	10 kΩ or more

Replace the EV charger lid switch assembly if the inspection result is not within the standard value.

Check illumination of the charging inlet light.

Apply battery voltage between the connector terminals to check the lighting condition of the light.

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Specification
1 (+) - 4(-)	Apply battery voltage.	Light ON

Replace the EV charger lid switch assembly if the inspection result is not within the standard value.
