Mass Air Flow And Intake Air Temperature Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

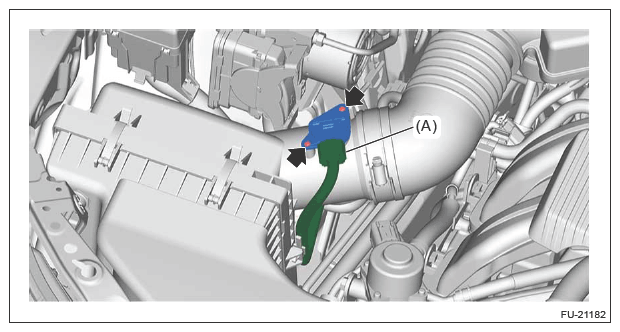

- Disconnect the connector (A) and remove the mass air flow and intake air temperature sensor.
