Manifold Absolute Pressure Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

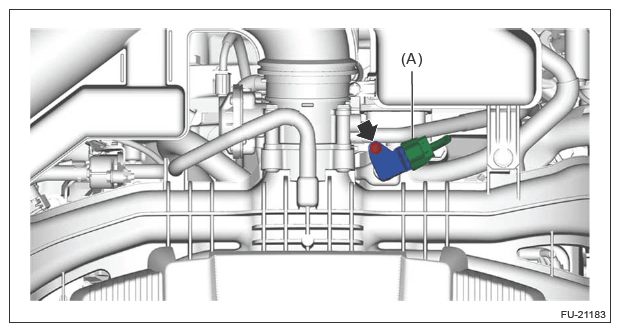

- Disconnect the connector (A) from the manifold absolute pressure sensor, and remove the manifold absolute pressure sensor from intake manifold assembly.
