High-Pressure Fuel Delivery Pipe

WARNING: This page is about a different variant/trim than selected.

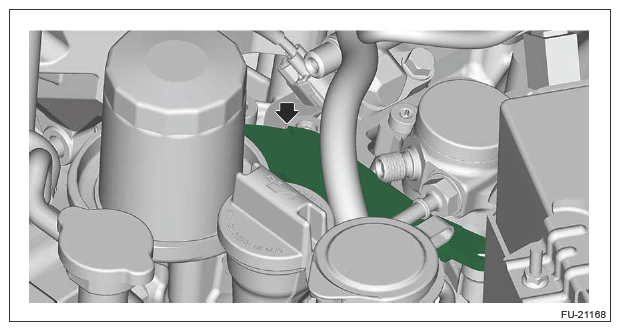

Set the fuel pipe protector No. 2.

Courtesy of SUBARU OF AMERICA, INC.

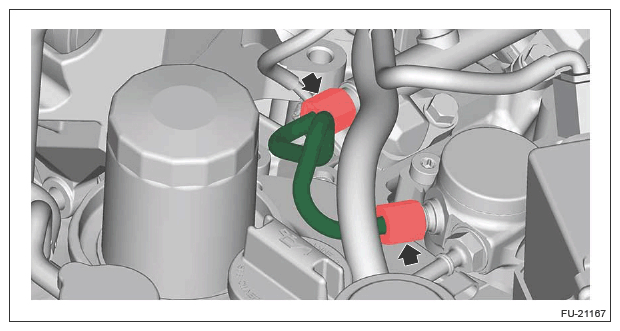

Temporarily tighten the flare nut of the high-pressure fuel delivery pipe by hand until it seats, and tighten the flare nuts on both ends.
CAUTION:
- Always use a new high-pressure fuel delivery pipe.
- Check that the seal surface of the fuel injector pipe LH and the high-pressure fuel pump have no deformation, cracks or other damages.
- Check that the seal surface of the fuel injector pipe LH and the high-pressure fuel pump have no foreign materials.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the fuel pipe insulator No. 3. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL INSULATOR>INSTALLATION .
Install the intake manifold assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>INTAKE MANIFOLD ASSEMBLY>INSTALLATION .
Connect the battery ground terminal. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
