High-Pressure Fuel Delivery Pipe Assembly

WARNING: This page is about a different variant/trim than selected.

Install the high-pressure fuel delivery pipe assembly.
CAUTION:
- Always use a new high-pressure fuel delivery pipe assembly.
- Check that the seal surface of the fuel injector pipe have no deformation, cracks or other damages.
- Check that the seal surface of the fuel injector pipe have no foreign materials.

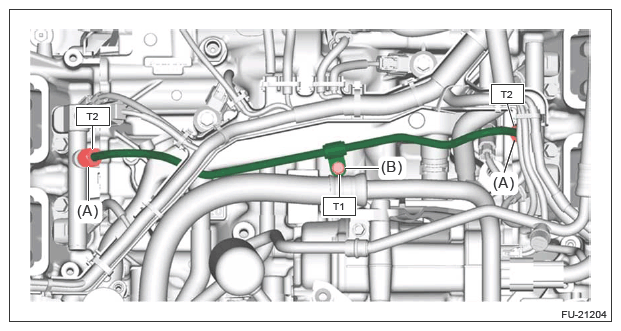

1. Temporarily tighten the flare nut (A) to the fuel injector pipe by hand until it is seated, and secure the high-pressure fuel delivery pipe assembly to the water pipe assembly using bolts (B).
  Tightening torque:

  T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
2. Tighten the flare nuts (A).
  Tightening torque:

  T2: 25 N.m (2.5 kgf-m, 18.4 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel pipe insulator No. 1, fuel pipe insulator No. 2 and fuel pipe insulator No. 3. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL INSULATOR>INSTALLATION .
Install the intake manifold assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>INTAKE MANIFOLD ASSEMBLY>INSTALLATION .
Connect the battery ground terminal. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
